Marin Rift Zone E XR 29 AXS - 2025
XR stands for EXTRA RAD. We turned the Rifty E up another notch with this one - RockShox Lyrik Ultimate fork and Super Deluxe Ultimate Shock, Vee Tire Co rubber, Shimano XT drivetrain, next-gen Shimano EP801 motor, SRAM Code 4-piston brakes. And the cherry on top? SRAM AXS wireless shifting and a wireless RockShox Reverb dropper post. Our highest spec, highest tech Rifty E ever.
Key upgrades from the Rift Zone E2
SRAM GX AXS T-Type
RockShox Lyrik Ultimate/Super Deluxe Ultimate suspension
SRAM Code Bronze 4-piston brakes
RockShox Reverb AXS dropper post
Specifications
FRAME Series 4 Alloy, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
FORK RockShox Lyrik Ultimate, 150mm Travel, 29", 110x15 Maxle Stealth, 42mm Offset
SHOCK RockShox Super Deluxe Ultimate, 210x55, 25mm x M8 Hardware, Custom Tune
RIMS Marin Aluminum Double Wall, 29" Diameter, 29mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible
HUB REAR Formula DC-711, 110x15, 6-Bolt, 32H
HUB FRONT Formula DCL-3482, 4 Sealed Bearings, 148x12, XD Driver, 6-Bolt, 32H
SPOKES 14g Black Stainless Steel
TIRES Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Overide E-Specific Casing

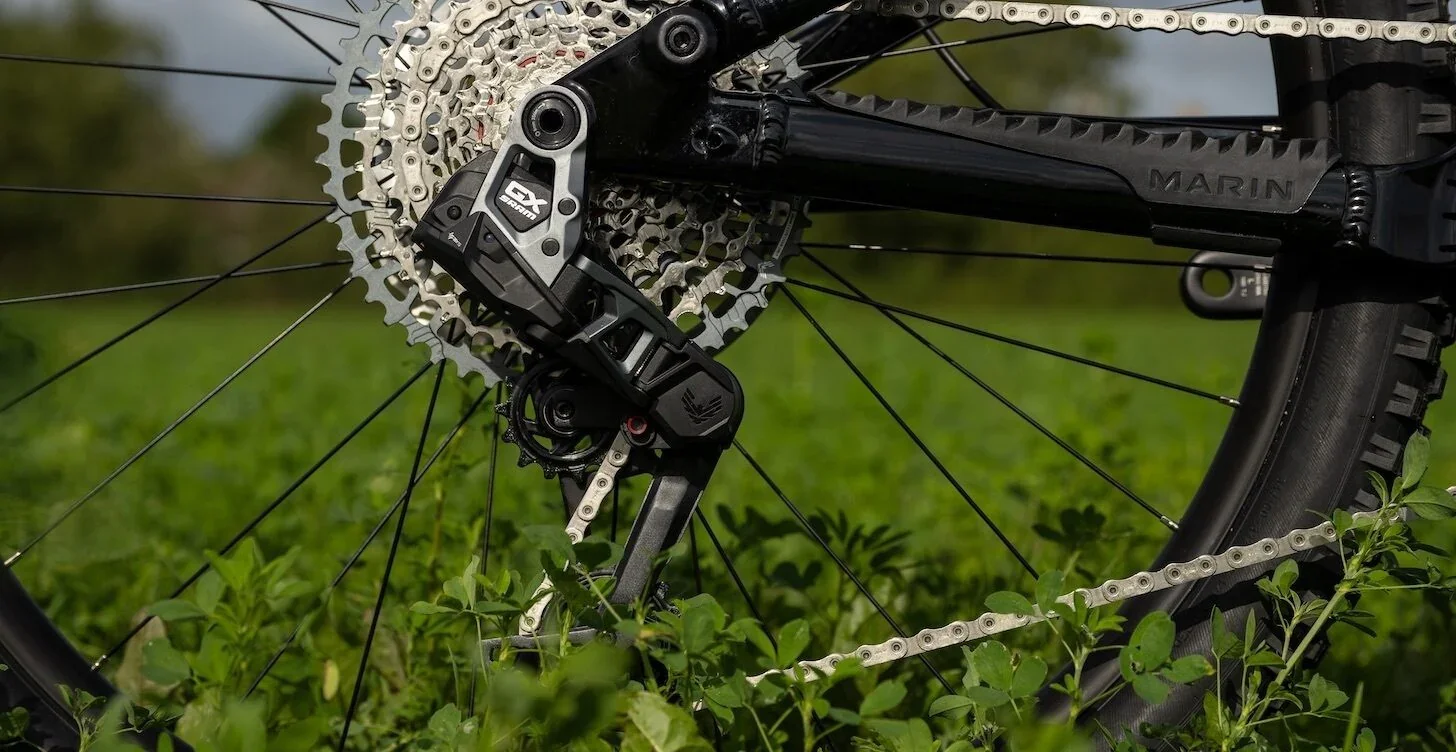

DERAILLEUR REAR SRAM GX AXS
SHIFT LEVER SRAM AXS POD
CRANKSET Shimano XT M8150, 160mm Length, 38T Steel SRAM Chainring

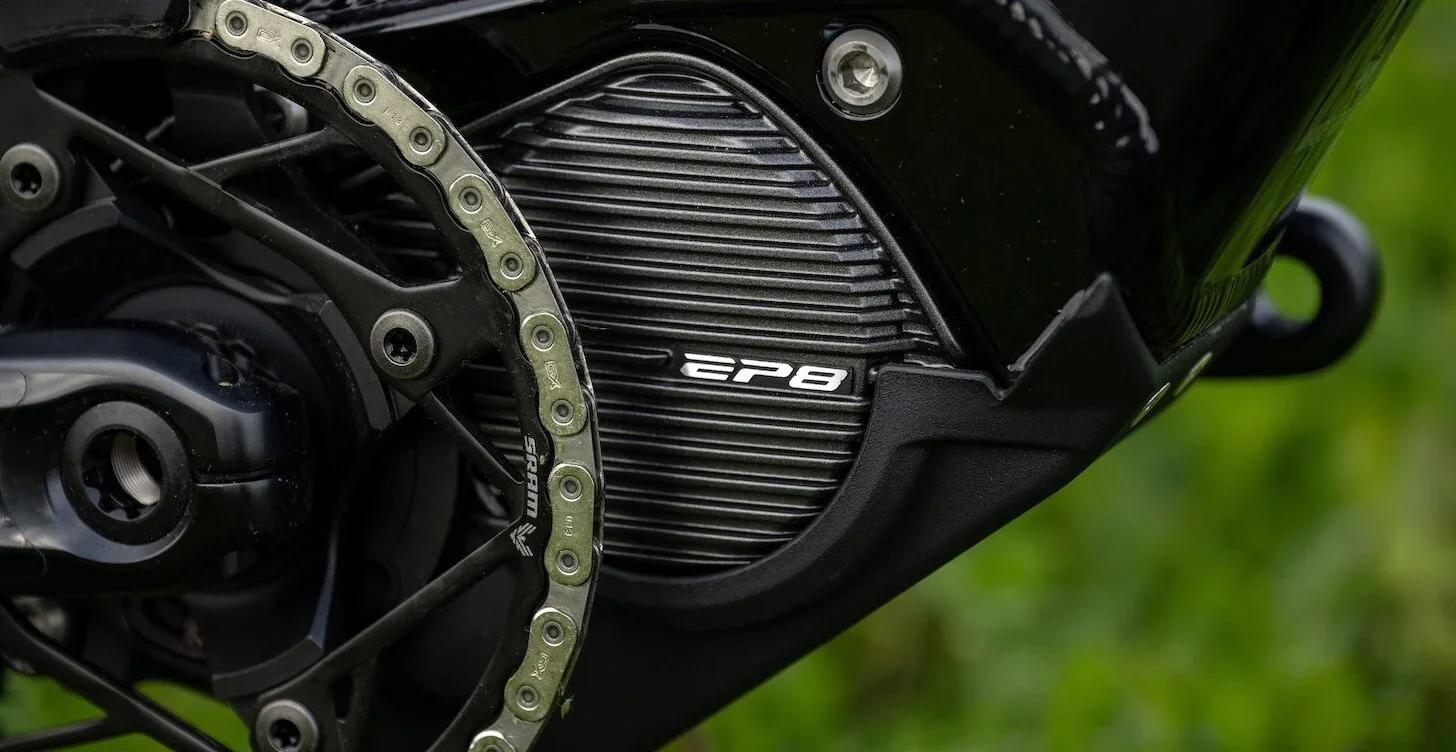

MOTOR Shimano EP801, 250W, 85Nm
CHAIN SRAM GX

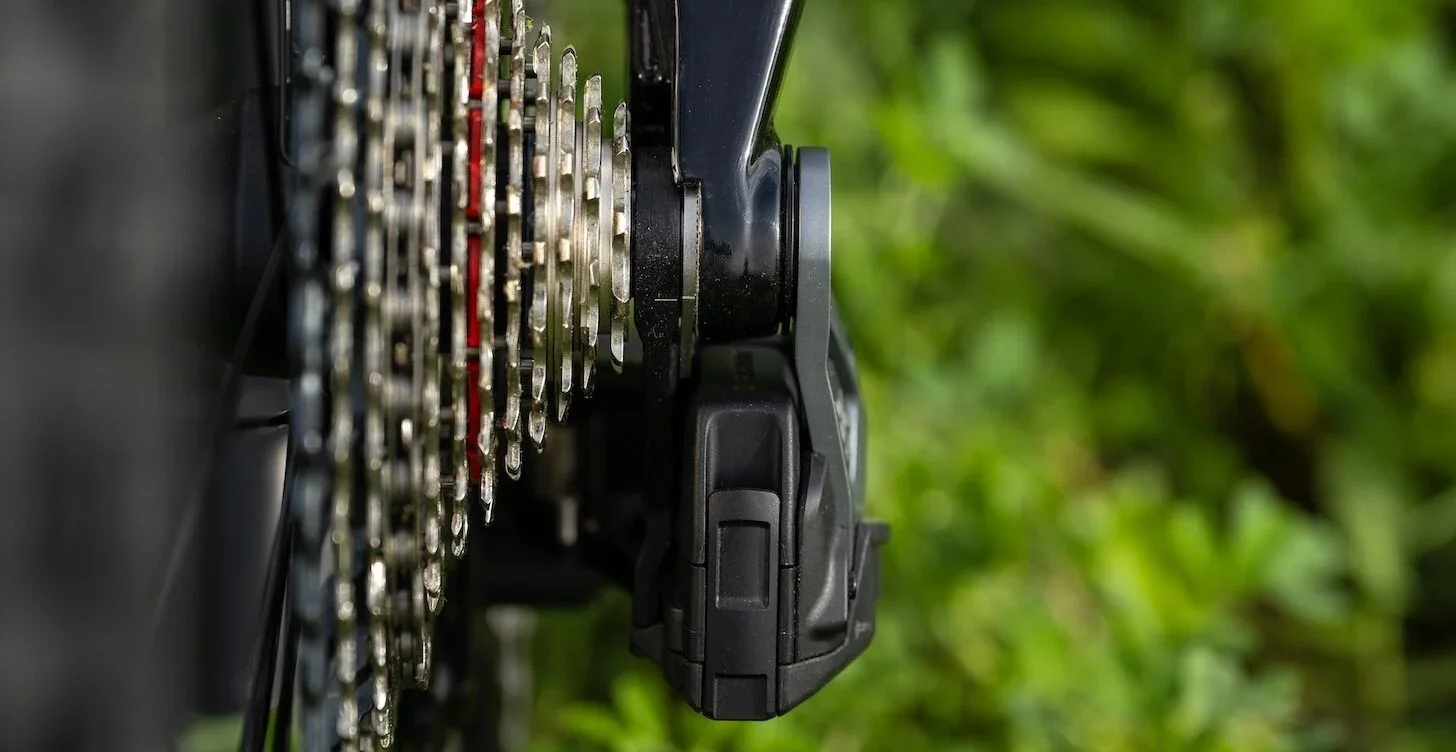

CASSETTE SRAM CS-XS-1275, 10-52T
BRAKES FRONT SRAM Code Bronze, 4-Piston Hydraulic Disc, 203mm HS2 Rotor
BRAKES REAR SRAM Code Bronze, 4-Piston Hydraulic Disc, 180mm HS2 Rotor w/ Bolt on Speed Sensor
BRAKE LEVERS SRAM Code Bronze Stealth
HANDLEBAR Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
STEM Marin CNC, 35mm Length, 35mm Bar Bore
GRIPS Marin Grizzly Lock On
HEADSET FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SEATPOST Rock Shox Reverb AXS with POD remote, Size S: 125mm, Size M: 150mm, Size L/XL: 170mm
SADDLE Marin eMTB
PEDALS Marin MTB Plastic
BATTERY BT-EN806 Internal 630Wh

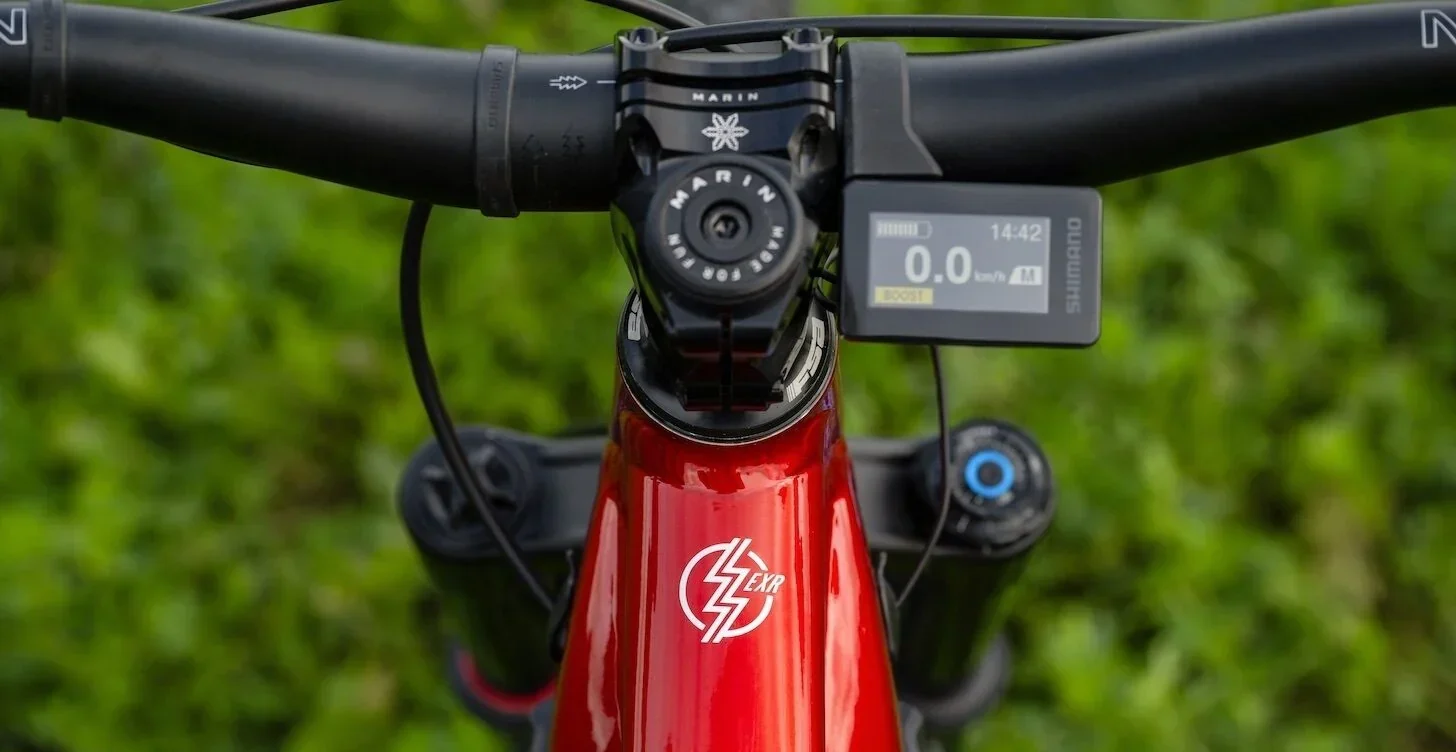

DISPLAY Shimano SC-E600
SWITCH SW-EN600L Left Hand Switch for Assist Mode Change
EXTRAS Shimano CS-EM800 Chain Guide, Shimano Battery Charger EC-E6002, 2A; Cush Core Pro Tire Inserts, Marin Tire Sealant 300ml Bottle
Range, Charging Time 15-43 miles (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 11 Hours (estimated, under ideal conditions)
Specifications, pricing, and availability are subject to change without notice.
