Omnium Mini 3.1 Frame Kit

V3.1 brings the biggest update to the Mini yet. The frame now uses the same rack-mounting system as the Cargo and Mini-Max, opening the door for upgrades such as the tilting rack bracket. The rack itself has been redesigned with round tubing for a cleaner look, and for dynamo-light compatibility. With the new rack comes new webbing, using the v2 dual-axis design for the round-tube rack that also comes with the Nano.

For the update, we’re also introducing the V3.1 fork, which has already been added to the Cargo and Mini-Max models.

The biggest change is the replacement of the XS with a Step Through (ST) version, to allow for a bigger audience to be able to fit the Mini and make the bike easier to use for anyone wanting to run rear-mounted child seats.

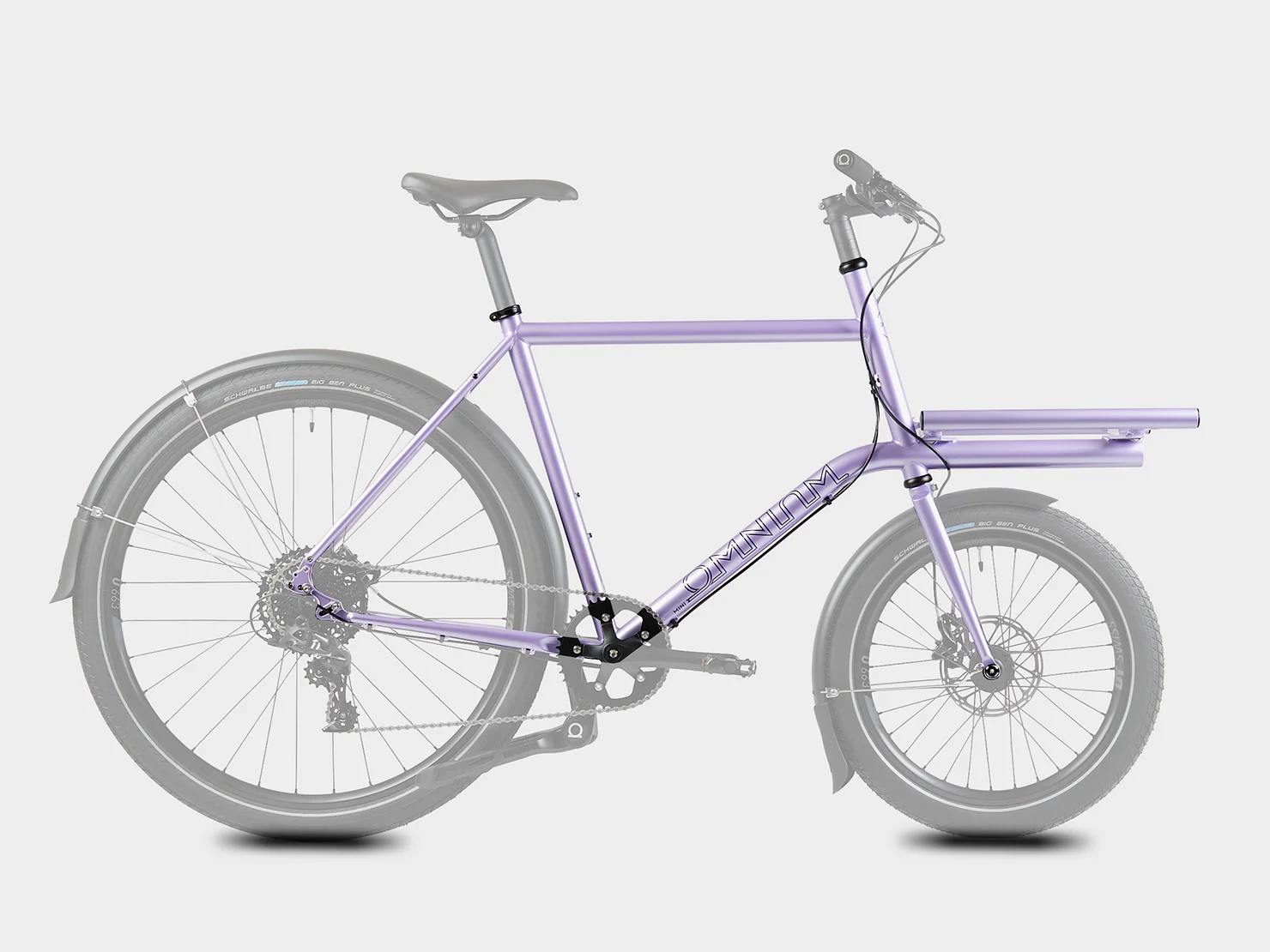

The OMNIUM Mini is a fast, agile reimagining of the short john bike, built to handle surprisingly heavy loads. Its compact size makes it easy to manoeuvre and integrates simply with both smaller residences and multimodal transport.

The front rack is ideal for anything too bulky and uncomfortable to carry on your back. You can keep your belongings in sight and carry serious weight all day without the bike feeling overloaded.

The 29-inch rear wheel helps the Mini effortlessly keep pace over longer distances, giving it an edge over other short john designs. Full rear rack mounts let you attach a range of panniers or rack mounted child seats, ideal for urban commuters.

Unlike many cargo bikes, the Mini rides like a regular bike. It feels quick, stable, safe and intuitive. Adapting to the Mini takes minutes and you quickly wonder how you managed without it.



DESIGN

The Mini is designed around a 55 mm (2.15 inch) tyres front and rear. Bigger tyres come with plenty of benefits, and these are the ones that matter most. High volume tyres run at lower pressure, which gives you a natural layer of cushioning between you and the road. The result is more comfort, more control, and an easier ride on rough surfaces like gravel, cobblestones, and battered city streets.

We have also updated the frame with the new v3.1 segmented fork that still comes with thru axles. Thru axles first appeared on downhill mountain bikes in the late 90s, and these days they are the standard on most disc brake bikes. They make perfect sense on a cargo bike. This setup increases stiffness, improves braking performance, handles heavy loads more securely, and reduces the chance of incorrect installation or brake rub.





Frame Material	Double Butted Chromoly Steel Frame
Sizes	ST (Step Through), S, M, L, XL
Rack Dimensions	400x500mm
Seat post diameter	31,6mm
Seat post clamp size	34mm (ST 34,9mm)
Fork Brake Mount	IS – Disc only
Rear Brake Mount	Dependent on insert choice – Disc only
Front Wheel	406, 15x100mm spacing
Rear Wheel	TA Insert: 622, 12 x 142mm spacing, disc only QR Insert: 622, 10 x 135mm spacing, disc only
Tyre Clearance Front	55mm with mudguards
Tyre Clearance Rear	55mm with mudguards
Thru Axle Front	15×100, 125mm long, 17mm thread length, 1.5mm pitch
Thru Axle Rear	12×142, 172mm long, 19mm thread length, 1.75mm pitch
Headset	1 1/8” Ahead
Bottom Bracket	68mm BSA
Gears	For 1x rear derailleur gear, single speed or internal hub gears
Rack Bolt	M15 x 15mm
Rack Weight	TBU
Frame Kit Weight	TBU
Maximum Loading Weight on Front Rack	50kg
Maximum Total Loading Weight Incl. Rider	125kg
