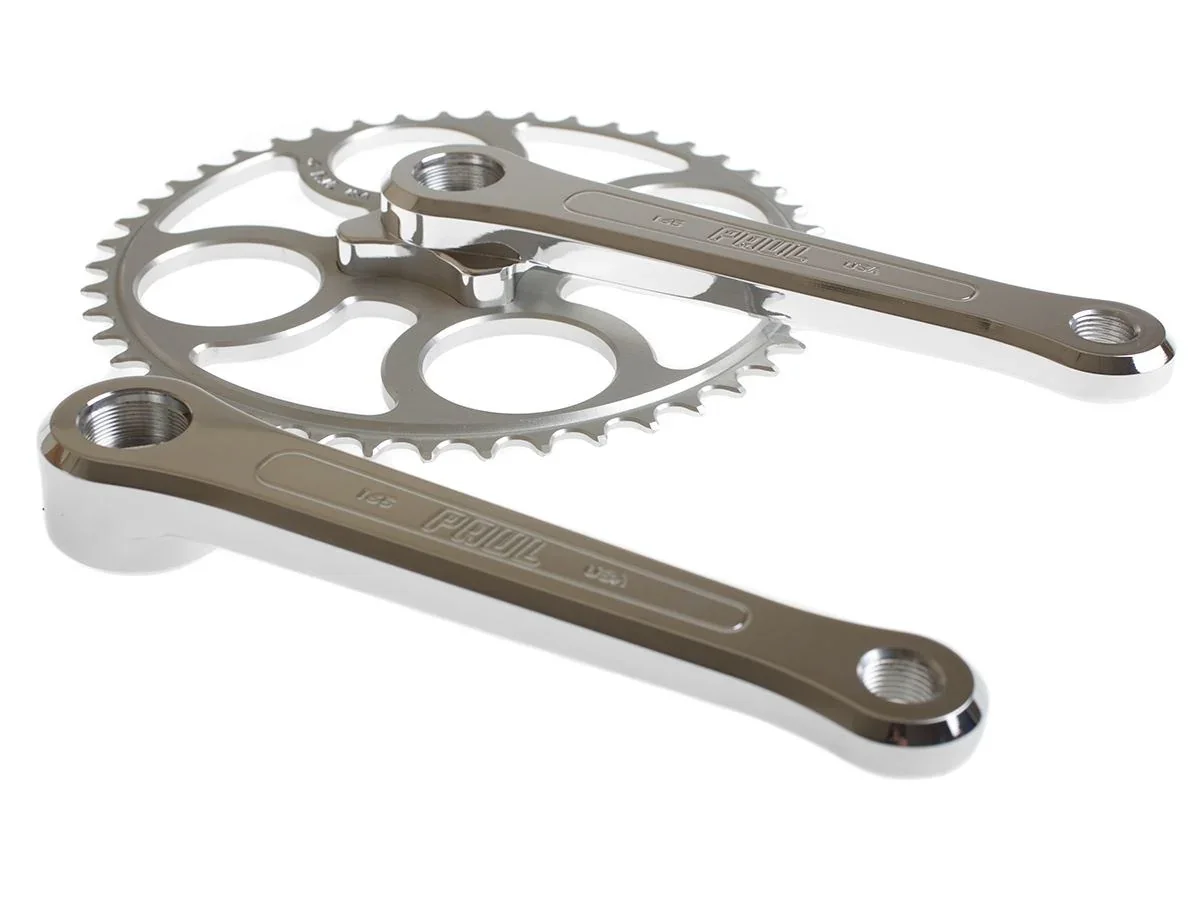

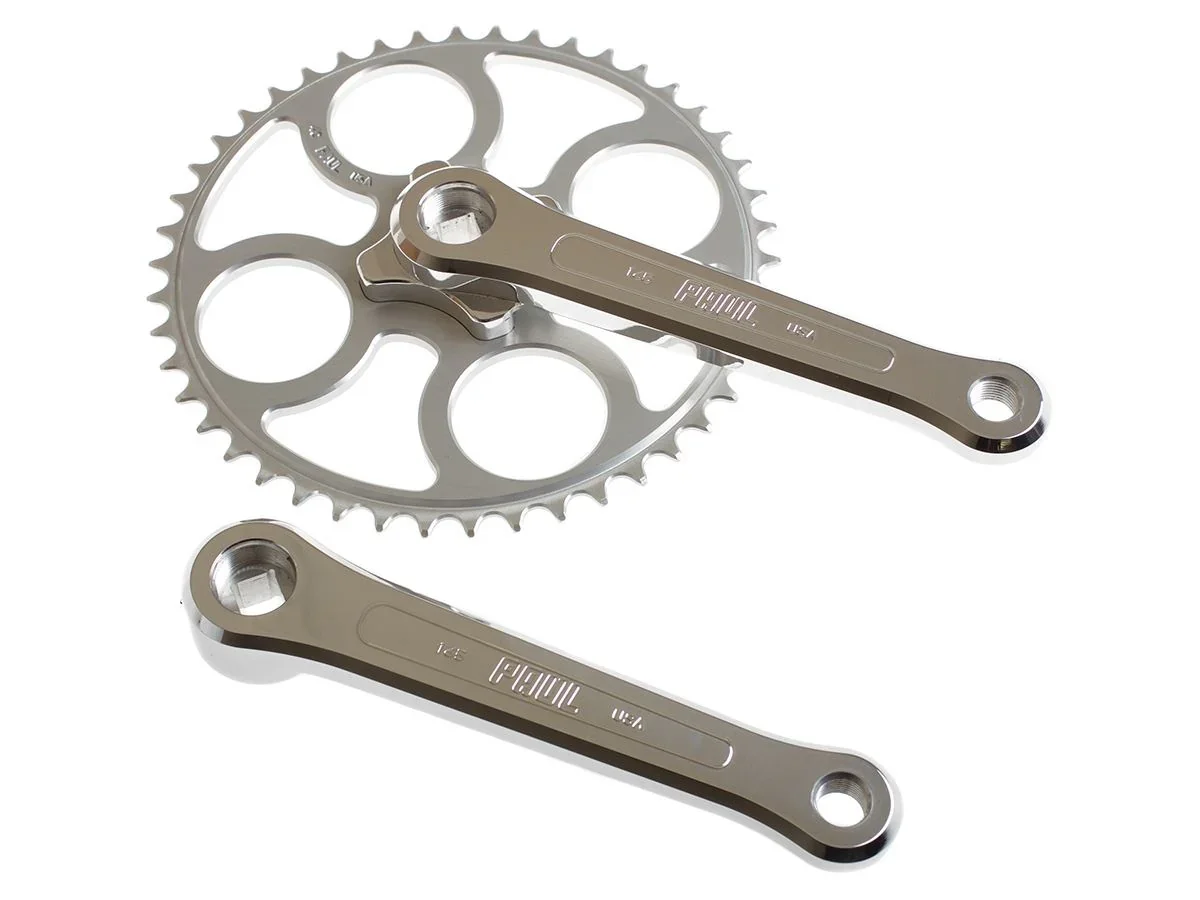

Paul Components Circles Crankset

100% Pure Crank from Paul Component Engineering. Strong, elegant & classy.

Paul Components cranks take advantage of the narrower chain stays found on road frames, and the 44mm chainline of Paul Components High Flange hubs.


These cranks use a specially designed interlocking chain ring/crank interface. Four 7075 aluminium chain ring bolts with T25 Torx heads bolt through the chain ring and into the reinforced spider on the crank arm.


The crank arms are machined from 2024 aluminium, a very strong and stiff material and are available with 165mm arms.


The chain rings are machined out of 6.3mm thick aluminium plate; very sturdy. Wider teeth designed only to work with 1⁄8” chains which prolongs their life span.

• 2024 aluminium crank arms
• 6061 aluminium chain ring
• 165mm arms
• 1/8"
• 111mm ISO square tapered bottom bracket required
• 44mm chainline
• 46t or 48t
• 556g - 680g

Crank bolts and bottom bracket are not included.

Select Color
From $105.58

Original: $301.65

-65%
Paul Components Circles Crankset

$301.65

$105.58
