Polygon Strattos S6D

Product image 1
Product image 2

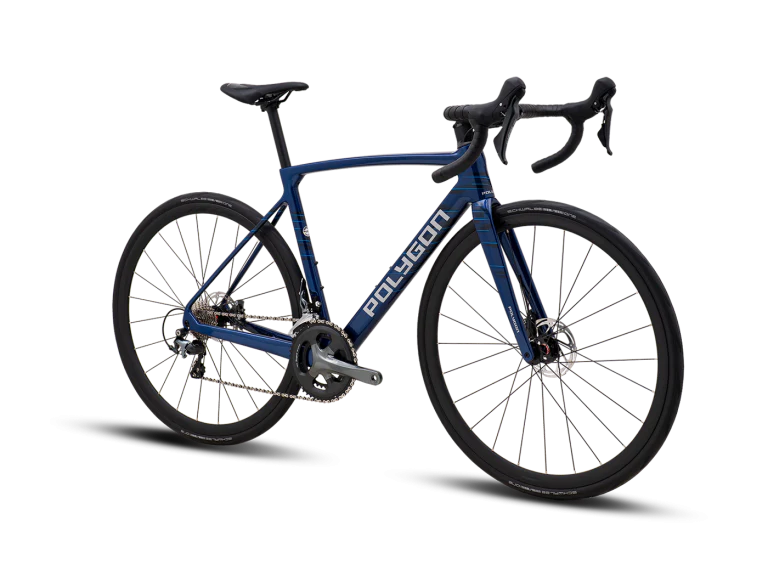

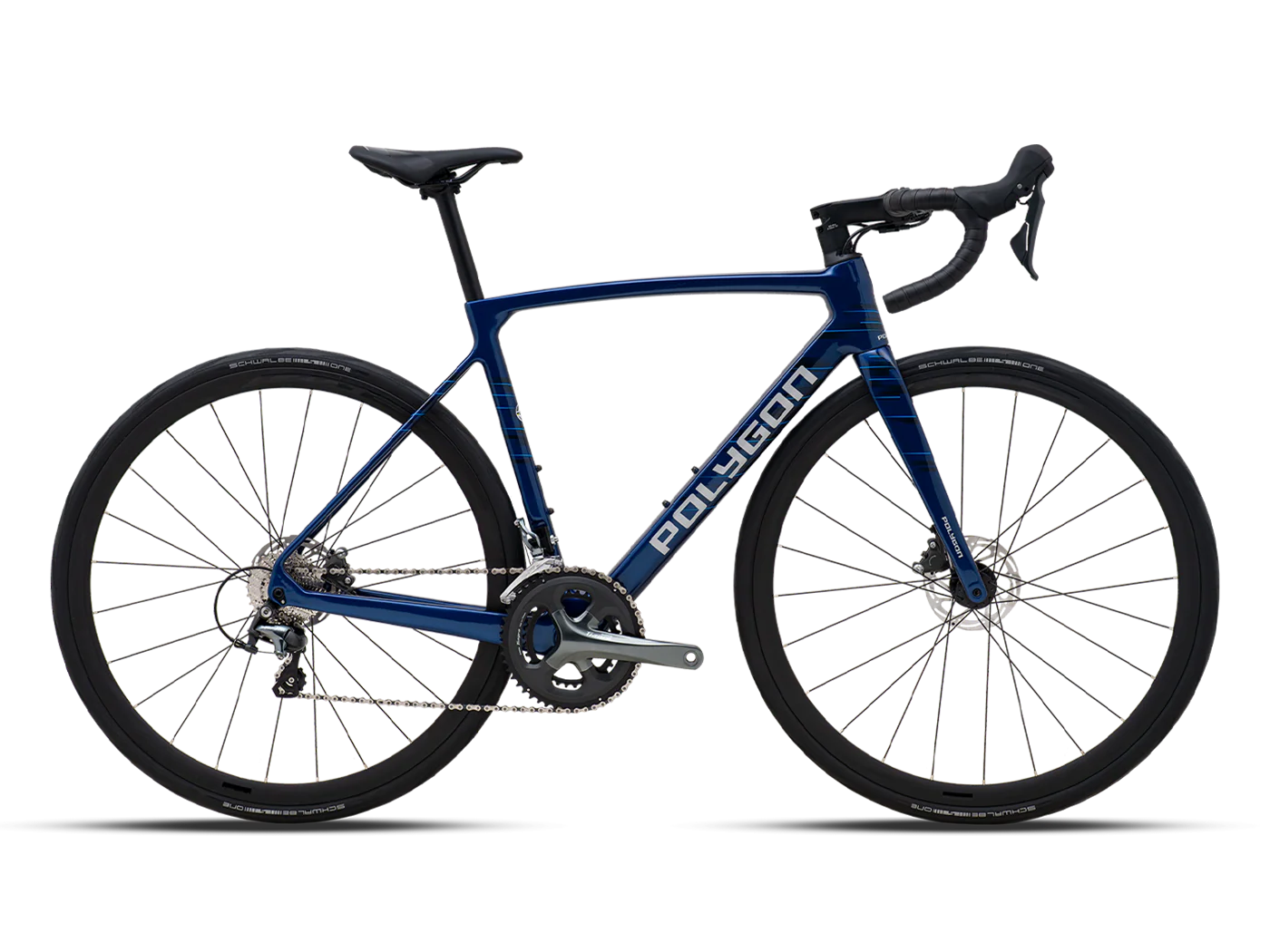

Polygon Strattos S6D


YOUR GATEWAY TO A WHOLE NEW DIMENSION OF FUN

All-rounder road bike built with a UCI approved ACX frame that is astonishingly responsive, smooth, and fast

Elevate your cycling experience with the Polygon Strattos S ACX. Featuring a UCI-approved ACX carbon frame, this road bike offers exceptional responsiveness, smooth handling, and incredible speed. Perfect for long endurance rides or smashing personal records, it’s engineered to help you perform at your peak.

Frameset
Frameset
ACX ALL-ROUND

Fork
ACX ALL-ROUND

Frame Color
BLUE

Decal Color
WHITE

Drivetrain
Shifter
SHIMANO TIAGRA ST-R4720, 2x10-SPEED DUAL CONTROL LEVER

Crank
SHIMANO TIAGRA FC-4700 50/34T

Cassette
SHIMANO TIAGRA CS-HG500 12-28T

Rear Derailleur
SHIMANO TIAGRA RD-4700-SS DIRECT ATTACH

BB
SHIMANO BB-RS500-PB

Chain
KMC X10

Cockpit
Saddle
LINC FLUX 2, CR-MO ø 7mm

Seatpost
POLYGON EXPERT, 27.2 x 350mm

Handlebar
POLYGON EXPERT, W: 400MM (XXS, XS, S) / 420MM (M, L) / 440MM (XL, XXL), BB: 31.8mm, R/D: 125mm, B/R: 70mm (XXS, XS, S, M, L) / 77MM (XL, XXL)

Handlestem
POLYGON EXPERT, EXT: 90mm (XXS, XS, S) / 100mm (M, L) / 110mm (XL, XXL), BB: 31.8mm, R/D: 10degree

Headset
INTEGRATED (IS) SEALED BEARING FOR OS HEAD TUBE, IS 52/28.6 | IS 52/40

Wheel & Tire
Wheel Set
POLYGON RD6 DISC

Wheel Size
700C

Tire
SCHWALBE ONE ADDIX 700x28C

Rim
622-19 24H FOR TYRE 622-28/62 DISC TUBELESS READY

Hub
F: ALLOY THRU AXLE 12x100mm 24H SEALED BEARINGS 6-BOLTS / R: ALLOY THRU AXLE 12x142mm 24H SEALED BEARINGS 6-BOLTS

Brake
Brake Lever
SHIMANO TIAGRA ST-R4720

Brake Caliper
SHIMANO TIAGRA

Rotor
TRP RS02M 140mm 6-BOLTS


 XXS XS S M L XL XXL
Height (cm) 144-154 154-164 162-170 168-176 174-181 180-187 185-195
Seat Tube Length (A) 390 454.2 474.2 500 524.7 554.3 584.2
Seat Tube Angle (B) 75.5 75 74.5 74 73.5 73 73
Effective Seat Tube Angle (C) 75.5 75 74.5 74 73.5 73 73
Head Tube Length (D) 90 90 105 130 155 185 215
Head Tube Angle (E) 70.5 72 72.5 73 73 73 73
Effective Top Tube (F) 505 515 525 540 555 570 590
Bb Height (G) 271.5 271.5 271.5 274 274 276.5 276.5
Bb Offset (H) 72.5 72.5 72.5 70 70 67.5 67.5
Chainstay Length (I) 415 415 415 415 415 417 417
Wheelbase (J) 969.7 975.6 977.3 984.9 995 1007.9 1027.8
Frame Reach (K) 372.9 382.5 383.4 386.9 389.8 391.5 402.8
Frame Stack (L) 493.2 494.7 510.7 533.9 557.7 583.8 612.4
Standover Height (M) 717.13 729.43 748.69 775.85 801.17 832.25 862.17

Select Size
From $445.24

Original: $1,272.11

-65%
Polygon Strattos S6D—

$1,272.11

$445.24
