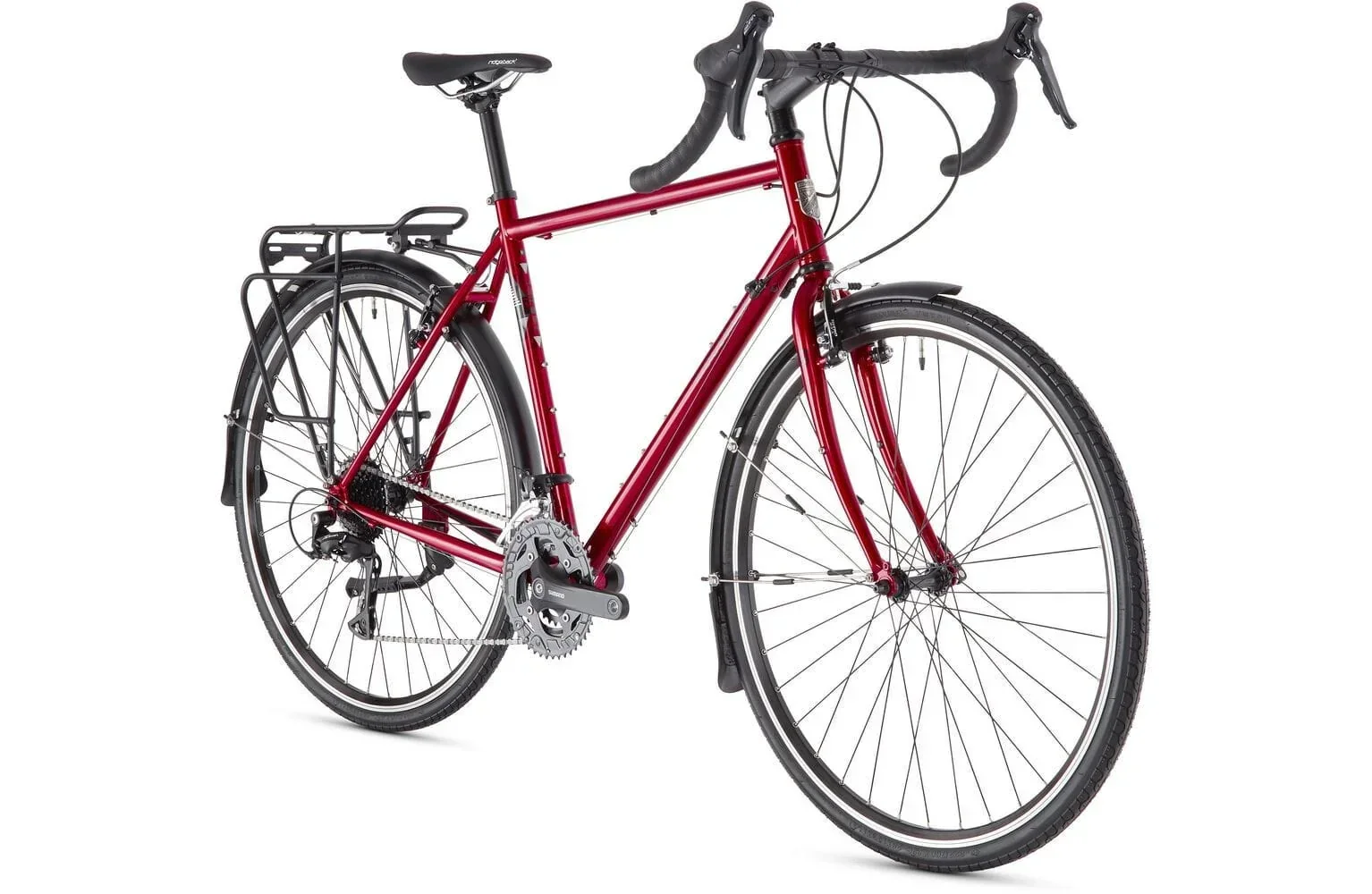

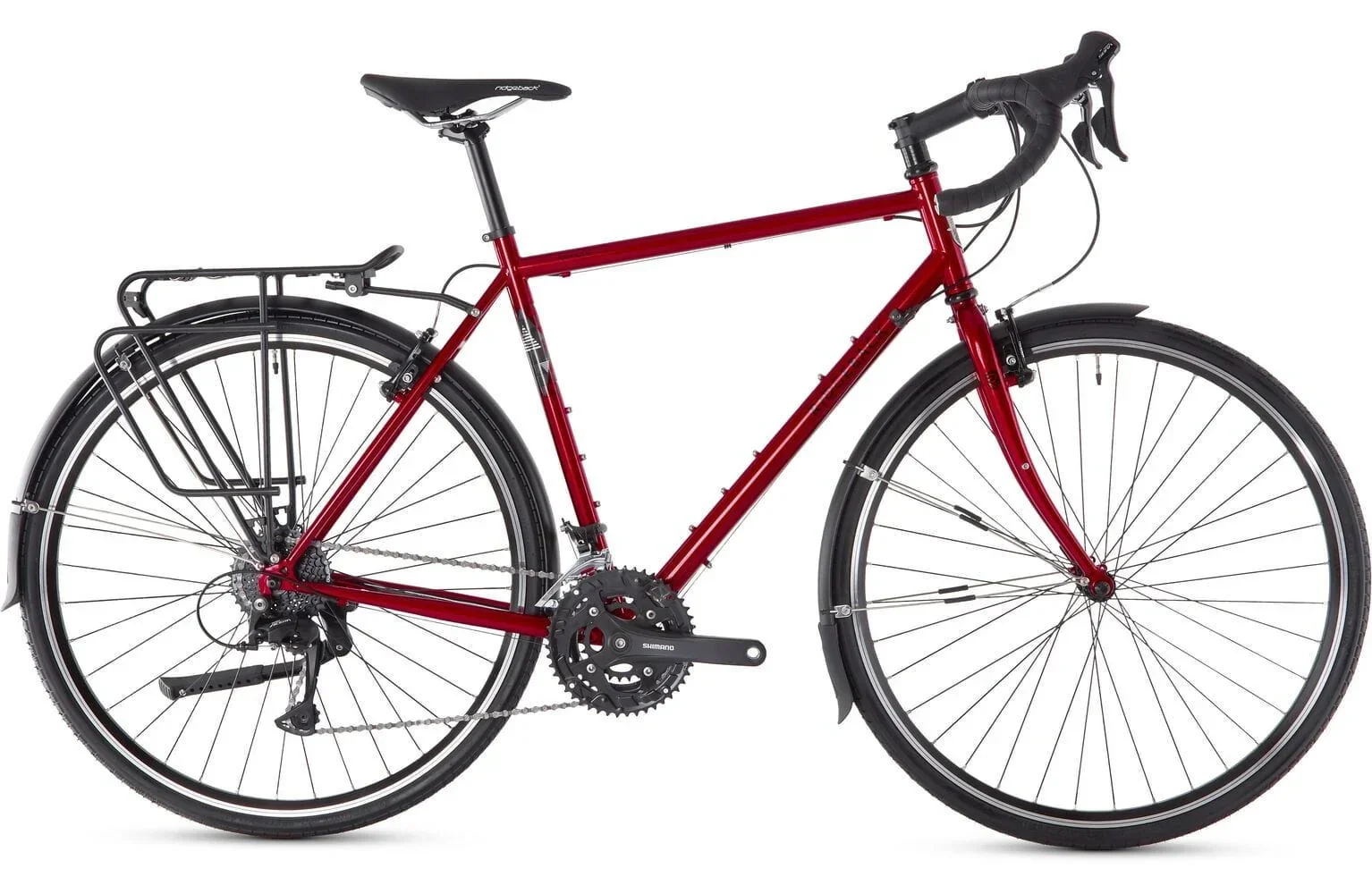

Ridgeback Voyage

With its classic looks and the new Voyage is a timeless all-day tourer.

Using Reynolds 520 chromoly, the frame gives a smooth and comfortable ride especially when combined with Kenda Kwest 32mm tyres and a gently raked chromoly fork.

A Shimano drivetrain with a triple chainset and 11-34 cassette make carrying luggage up the steepest climbs a breeze and Mini-V brake callipers improve braking performance compared to cantilever designs.

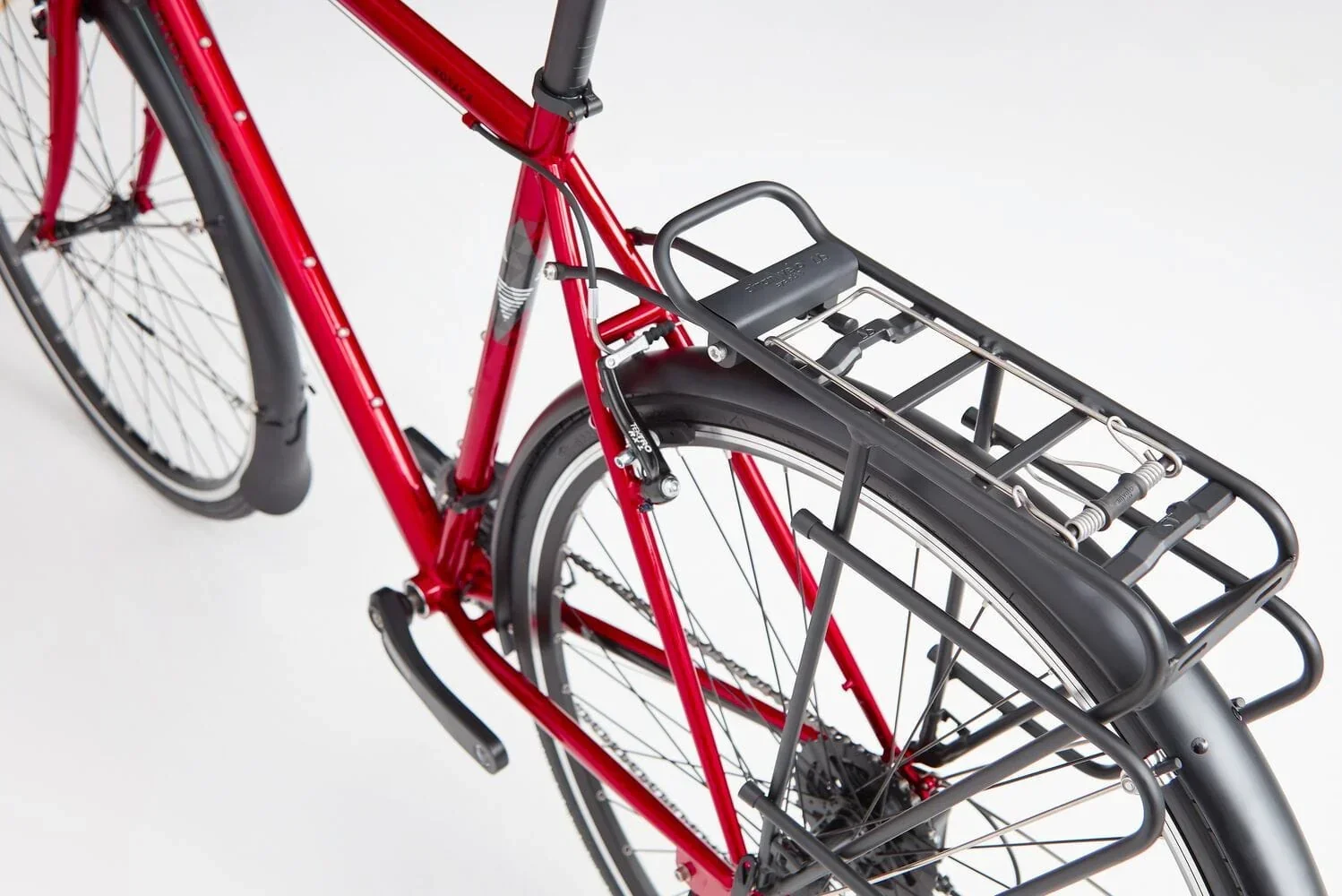

The Voyage is equipped with full-length mudguards and a rear panier rack.



SPECIFICATION

Brake Type: Rim

Fork Material: Chromoly

Frame Material: Steel

Bottom Bracket: Shimano BB-UN300

Max Tyre Size: 700 x 35mm

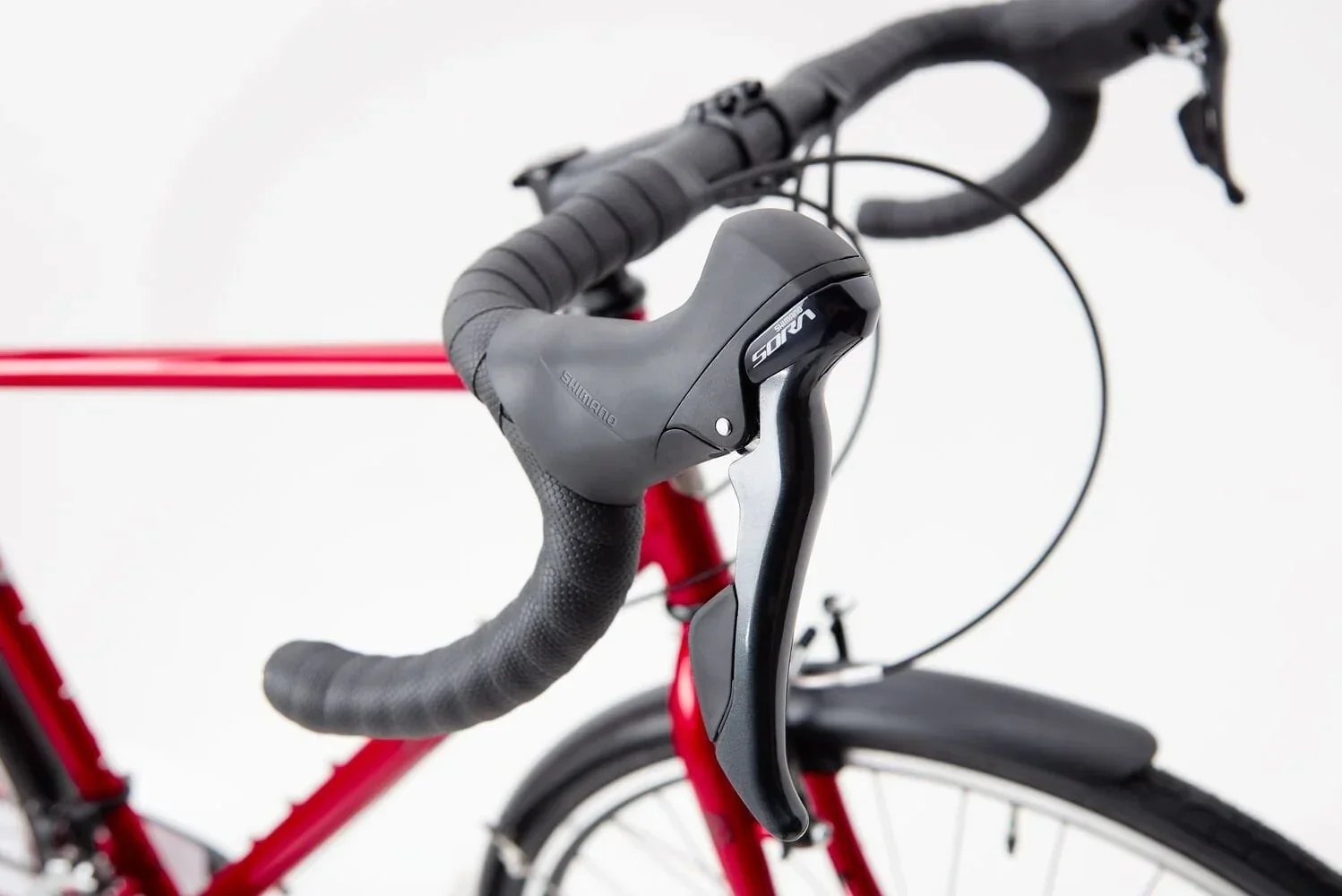

Brake Levers: Shimano Sora ST-R3030

Intended Use: Touring

Brakes: Tektro RX6 Mini-V

Cassette Freewheel: Shimano HG200 11-34T

Chain: KMC CNHG-53

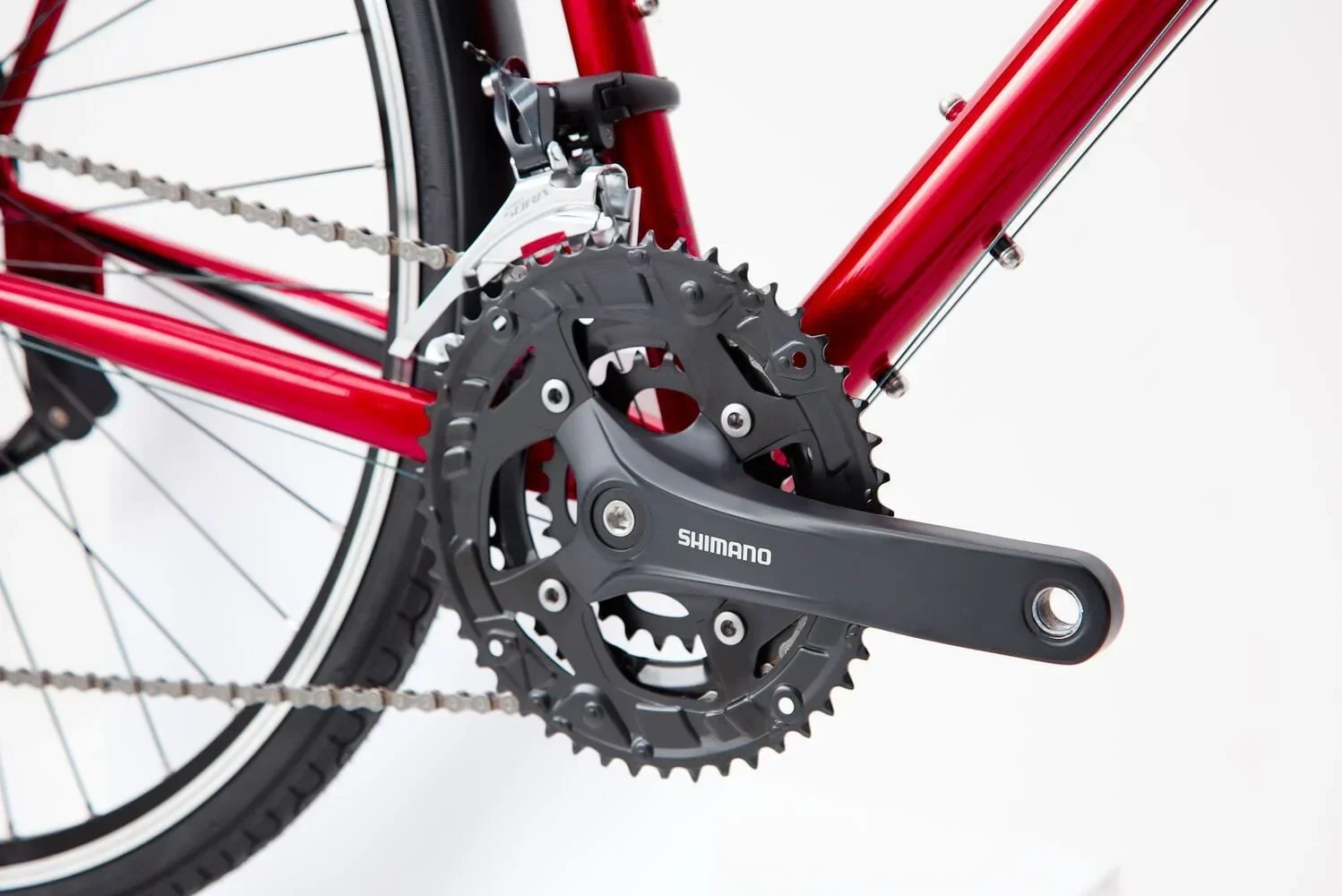

Chain Set: Shimano FC-T3010 48-36-26T

Fork: Chromoly Steel

Front Derailleur: Shimano Sora FD-R3030

Grip Tape: Ridgeback

Handlebars: Ridgeback Alloy XS 400mm / S-M 420mm / L-XL 440mm

Headset: Threadless 1-1/8" - EC34/28.6 | EC34/30

Hubs: Front KT-GP5F / Rear KT-AEZR

Mudguard: Matt Black Fitted

Pedals: FPD Road with Toe Clips

Rear Derailleur: Shimano Acera RD-T3000 SGS

Rims: Jalco DM23

Saddle: Ridgeback Custom

Seat Post: Ridgeback Alloy 27.2 x 350mm

Shifters: Shimano Sora ST-R3030

Spokes: Stainless Steel 14G Brass Nipples

Stem: Ridgeback Alloy XS 90mm / S-M 100mm / L-XL 110mm

Tyres: Kenda Kwest 700 x 32mm

Frame Shape: Crossbar

Gender: Mens, Womens

Wheel Size: 700c



SIZING

Large - 178 to 186

Medium - 171 to 179

Small - 164 to 172

XLarge - 185 to 193

XSmall - 156 to 164
