Surly Disc Trucker 26"

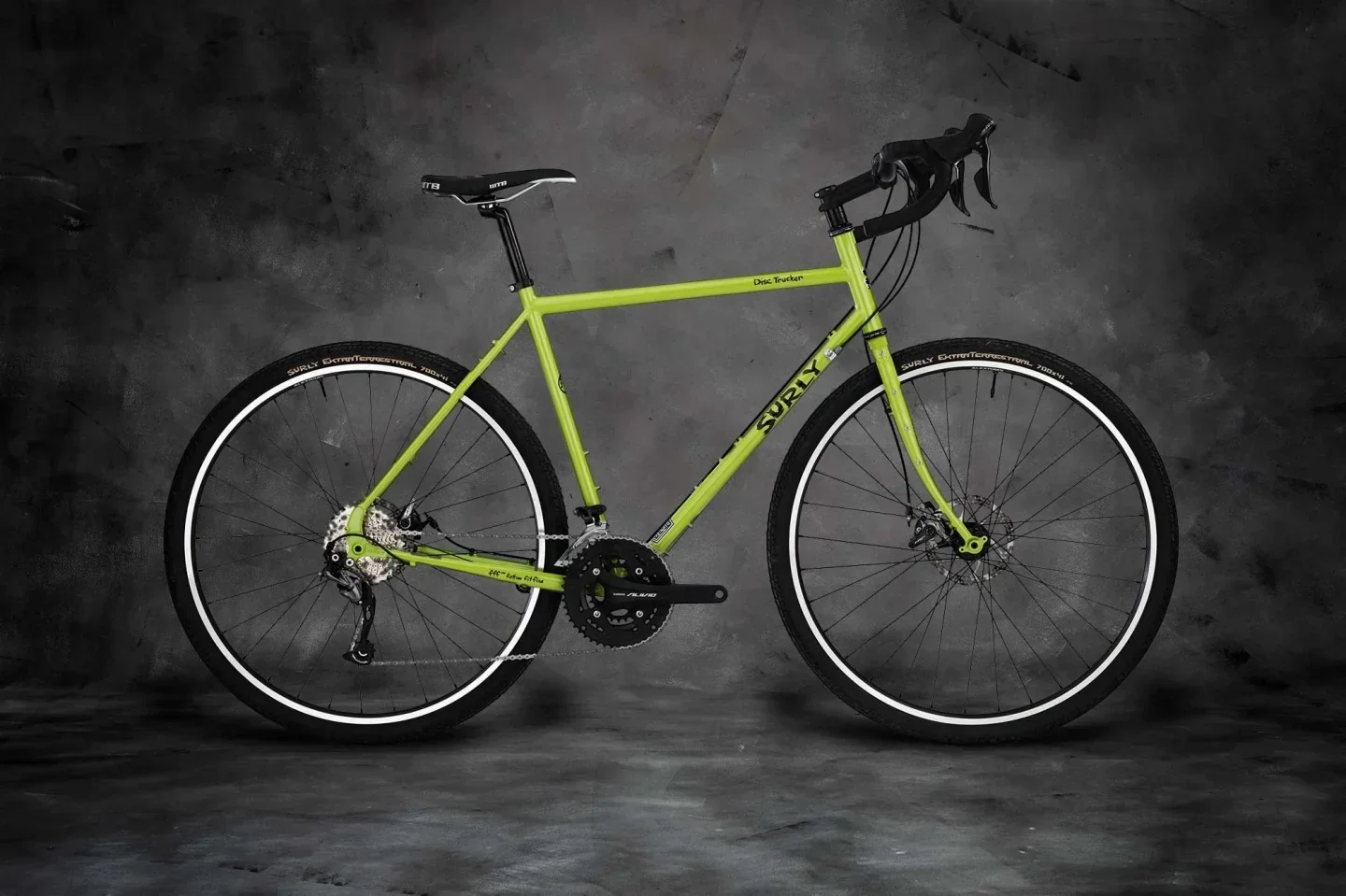

Product image 1

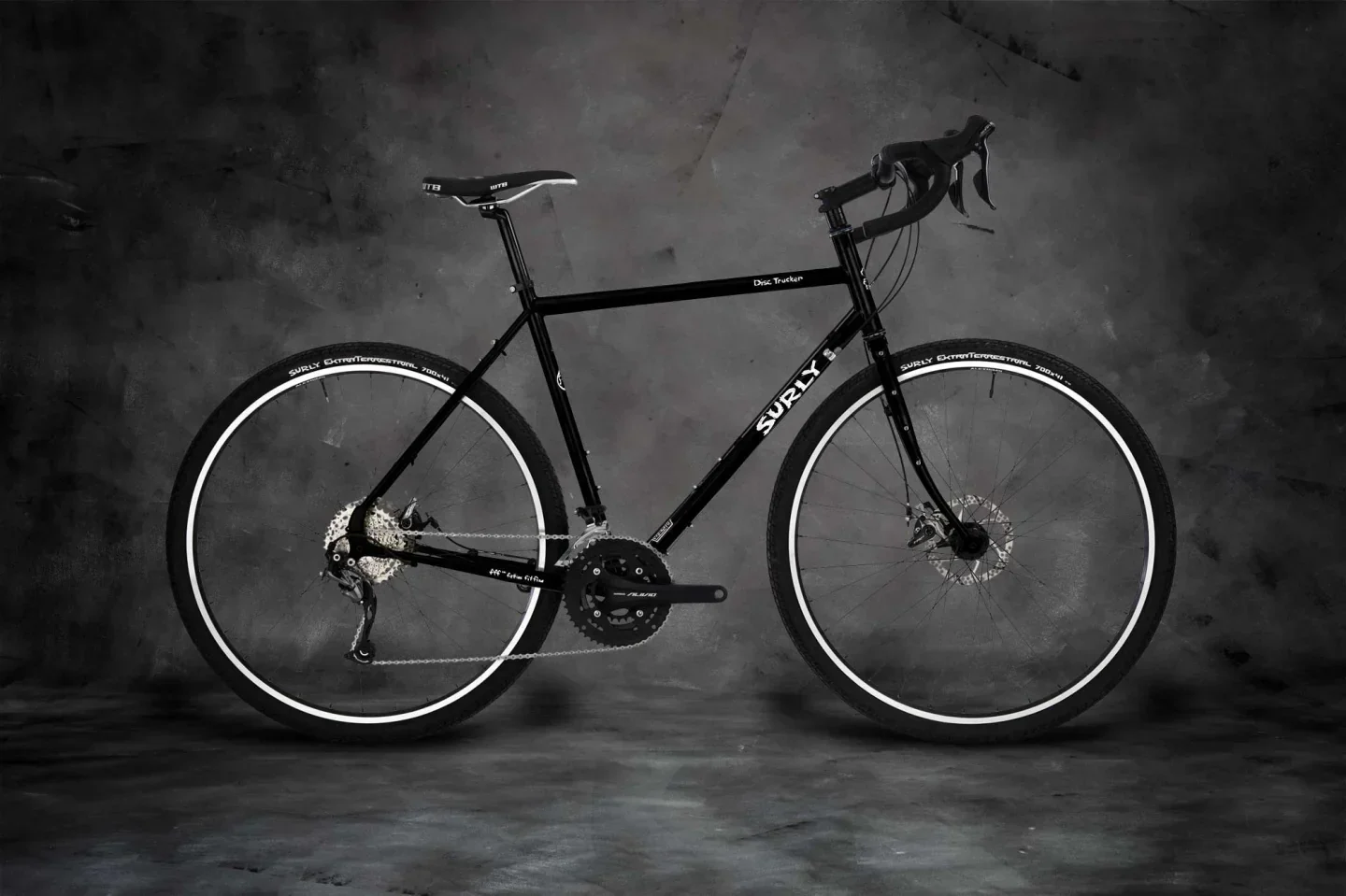

Product image 2

Surly Disc Trucker 26"

Disc Trucker enjoys the same reputation as Long Haul Trucker: It’s one of the best-riding and most value-packed drop bar touring bikes out there. Sometimes, however, a combination of load, climate, and terrain demands a bit more braking performance than a standard rim-brake LHT can provide.

That’s where the newly redesigned Disc Trucker comes in. Packing reliable stopping power and a horde of useful mounting points, shortened chainstays up the Disc Trucker’s stiffness and maneuverability around corners. Add in improved fit and handling under load, plus captured thru-axles for tool-free removal and installation, and the Disc Trucker is ready to help you meet — or dodge — your daily obligations.

  • Dynamo routing on the fork, plus three-pack mounts on the blade and every braze-on you’ll ever need for racks, fenders, water bottle cages, and more
  • 12mm thru-axles for a stiffer feel and increased stability when fully loaded
  • Shortened seat tube and slightly sloped top tube for improved stand-over clearance, plus increased stack height for a more upright and comfortable riding position on those long hauls
  • Spec’d with the Truck Stop Bar and tubeless ExtraTerrestrial tires for dependable handling and traction
  • Flat-mount disc brakes
  • Frame sizes 42–56cm are available with 26” diameter wheels, while frame sizes 56–64cm are available with 700c diameter wheels
  • Clearance for 26” x 2.1” tires with or without fenders, or 700c x 47mm with or without fenders

Frameset

Frame - Surly Disc Trucker: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated

Fork - Surly Disc Trucker: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated

Components

Headset - Cane Creek 40

Seatpost Clamp - Surly Stainless, 30.0mm

Seatpost - ProMax 27.2, 350L, non-offset (42-50), offset (52-64)

Stem - ProMax 31.8 4 bolt

Grips/Bar Tape - Black Cork

Saddle - WTB Volt Sport

Handlebar - Surly Truckstop Bar

Drivetrain

Front Derailleur - Shimano Sora R3030

Rear Derailleur - Shimano Alivio M4000 SGS

Cassette - Shimano Alivio, 11-34t, 9 speed

Chain - KMC X9

Crankset - Shimano Alivio 48x36x26t

Shifter - Shimano Sora 3x9

Brake Levers - Shimano Sora

Brake Calipers - TRP Spyre C

Bottom Bracket - Shimano BB-RS500

Rotors. TRP 160mm front and rear

Wheels

Front Tire - Surly ExtraTerrestrial 26x46

Rear Tire - Surly ExtraTerrestrial 26x46

Front Hub - Novatec 12x100, 6 bolt, 36H

Rear Hub - Novatec 12x142, 6 bolt, 36H

Rim -Alex Adventurer 2

Frame specs

  • Design Wheel/Tire Sizes26 x 2.0" or 700c x 47mm
  • Frame Construction4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
  • Fork Construction4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, ED coated
  • Rigid Fork Length26": 376mm / 700c: 390mm
  • Fork Offset45mm (26" & 700c)
  • Axle to Crown26": 376mm / 700c: 390mm
  • Rear Spacing12x142 (Axle included)
  • Rear Axle SizeØ12 x 162, TP=1.5, TL=12
  • Front Brake (Rotor)Disc - Flat Mount (160mm max rotor) – 25mm thick mount / 32mm bolt length
  • Headset - UpperEC34/28.6
  • Headset - LowerEC34/30
  • Front Spacing12x100 (Axle included)
  • Front Axle SizeØ12 x 118.5, TP=1.5, TL=12
  • Steerer TubeØ28.6mm (1-1/8")
  • Crown RaceØ30mm (1-1/8")
  • Stem ClampØ28.6mm (1-1/8")
  • SeatpostØ27.2mm
  • Dropper Post CompatibleNo
  • Seatpost ClampØ30mm
  • Front Derailleur TypeBottom-pull (Ø28.6mm)
  • Bottom Bracket68mm threaded (1.37" x 24TPI)
  • Crankset (Max Ring)1x (Road): 47T / 2x (Road): 34/50T / 3x (Road): 33/47/56T
  • Accessory MountsSeatstay mounted spoke holder, Surly removable kickstand plate included with complete bikes
  • Bottle Mounts3 Standard
  • Fork Mounts2 Three-Pack, Rack mounts: upper, lower, and mid-blade threaded
  • Front Fender MountsYes
  • Rear Fender MountsYes
Select Color
Select Size
From $765.95

Original: $2,188.43

-65%
Surly Disc Trucker 26"—

$2,188.43

$765.95
