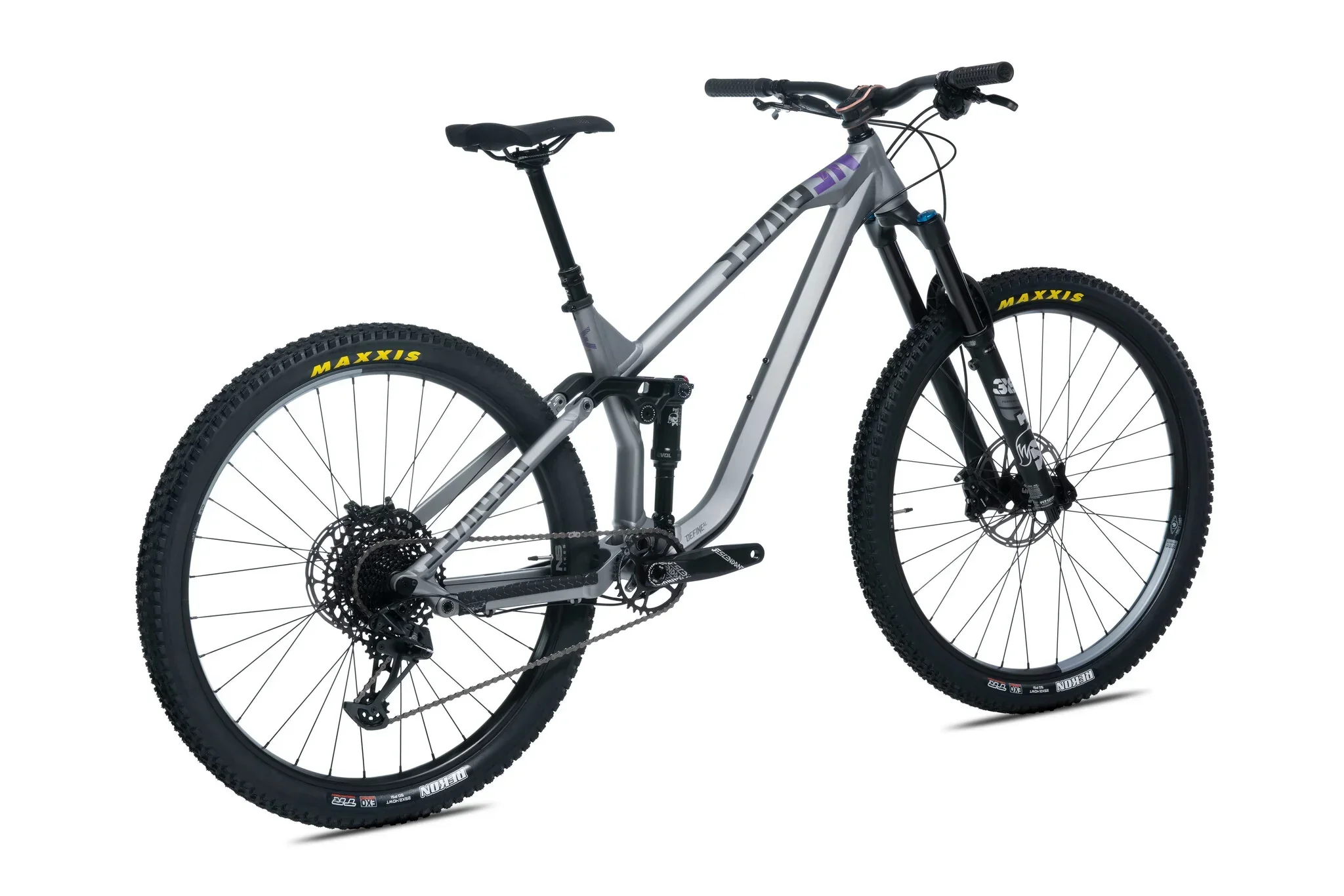

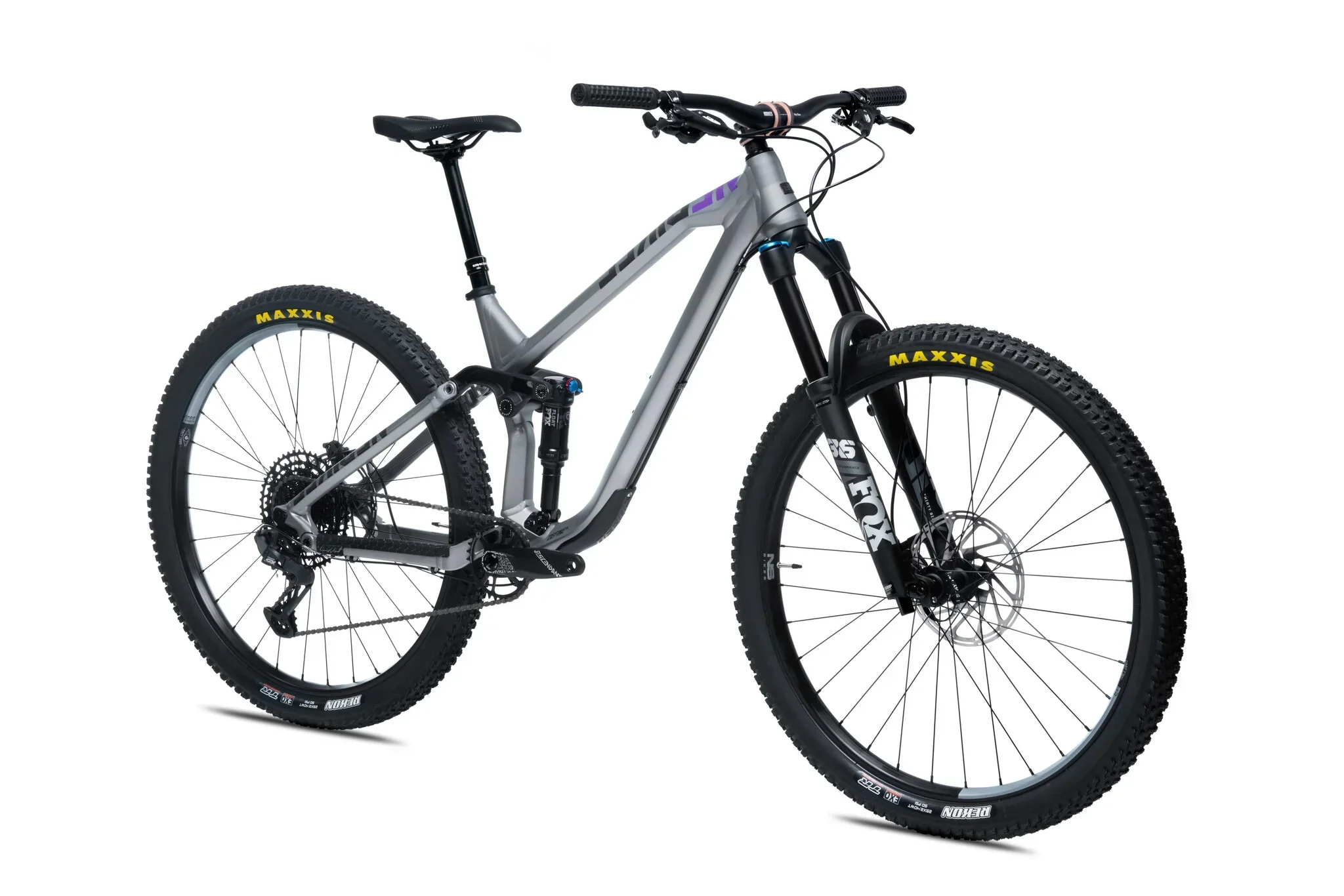

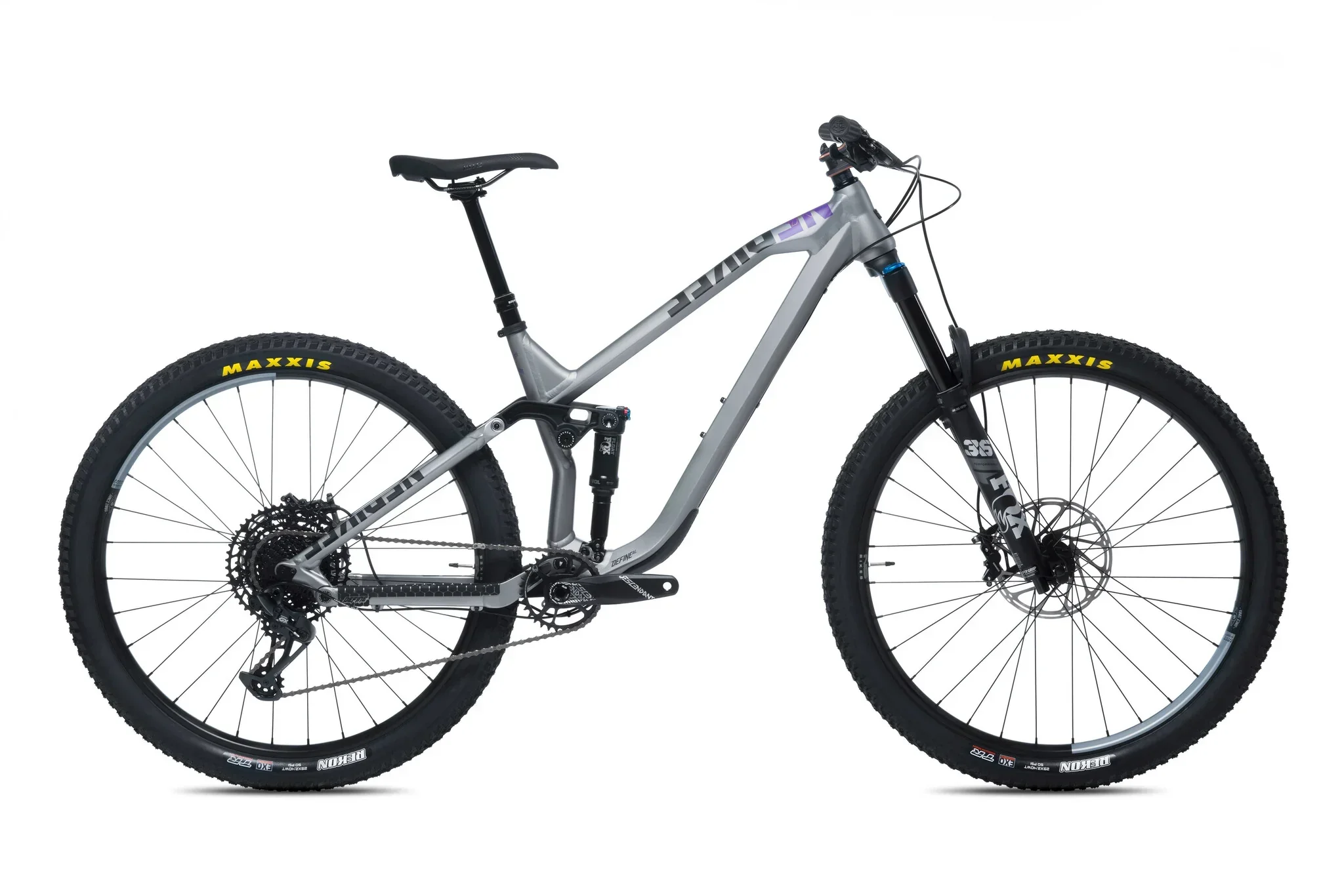

NS Bikes Define AL 140 1 - 2025

RIDE UP AND DOWN MOUNTAINS - ALL DAY, EVERY DAY.
THIS IS ARGUABLY ONE OF THE MOST VERSATILE BIKE IN OUR RANGE. FOR MANY RIDERS THIS ALLOY BEAUTY COULD BE THE ONE BIKE THEY WILL EVER NEED. IT SITS RIGHT IN THE MIDDLE OF CATEGORIES AND CAN BE USED FOR ANYTHING FROM LONG DISTANCE RIDES TO FUN DAYS OUT AT THE BIKE PARK. IT'S BIG WHEELS, 140MM REAR TRAVEL WITH 150MM FORK AND DIALED IN GEOMETRY DEFINES THIS BIKE'S DONWHILL AND UPHILL CAPABILITIES. THE FRAME’S UNIQUE SEMI-INTERNAL CABLE ROUTING IS A SOLUTION THAT IS ELEGANT AND EASY TO SERVICE. LARGE, SEALED PIVOTS GUARANTEE LONG PERIODS OF SMOOTH, SERVICE FREE FUNCTION. DO IT ALL MACHINE THAT WILL BRING A SMILE ON EVERY RIDERS FACE.

SPECS:

Frame: NS Bikes Define AL w/ 140mm travel

Sizes: S, M, L

Rear shock: Fox Performance Float 2pos-Adj Evol LV Trunnion 205x57.5

Fork: Fox Performance 36 Float Grip, 150mm travel, 3pos-Adj w/ Open Mode Adj, 15x110mm Boost, 1.5 tapered steerer tube, 44mm offset

Headset: GW integrated tapered IS42/IS52, sealed bearings

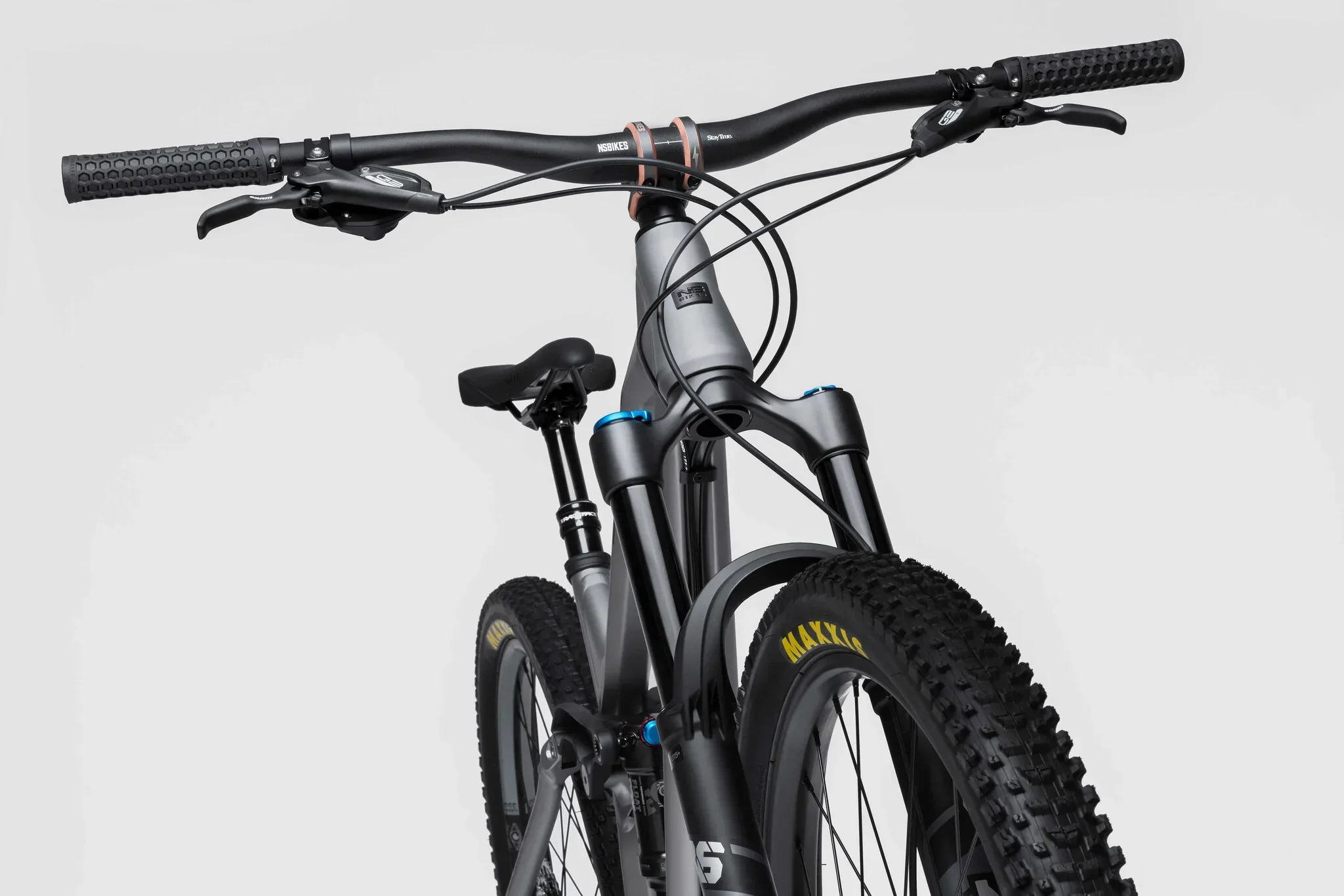

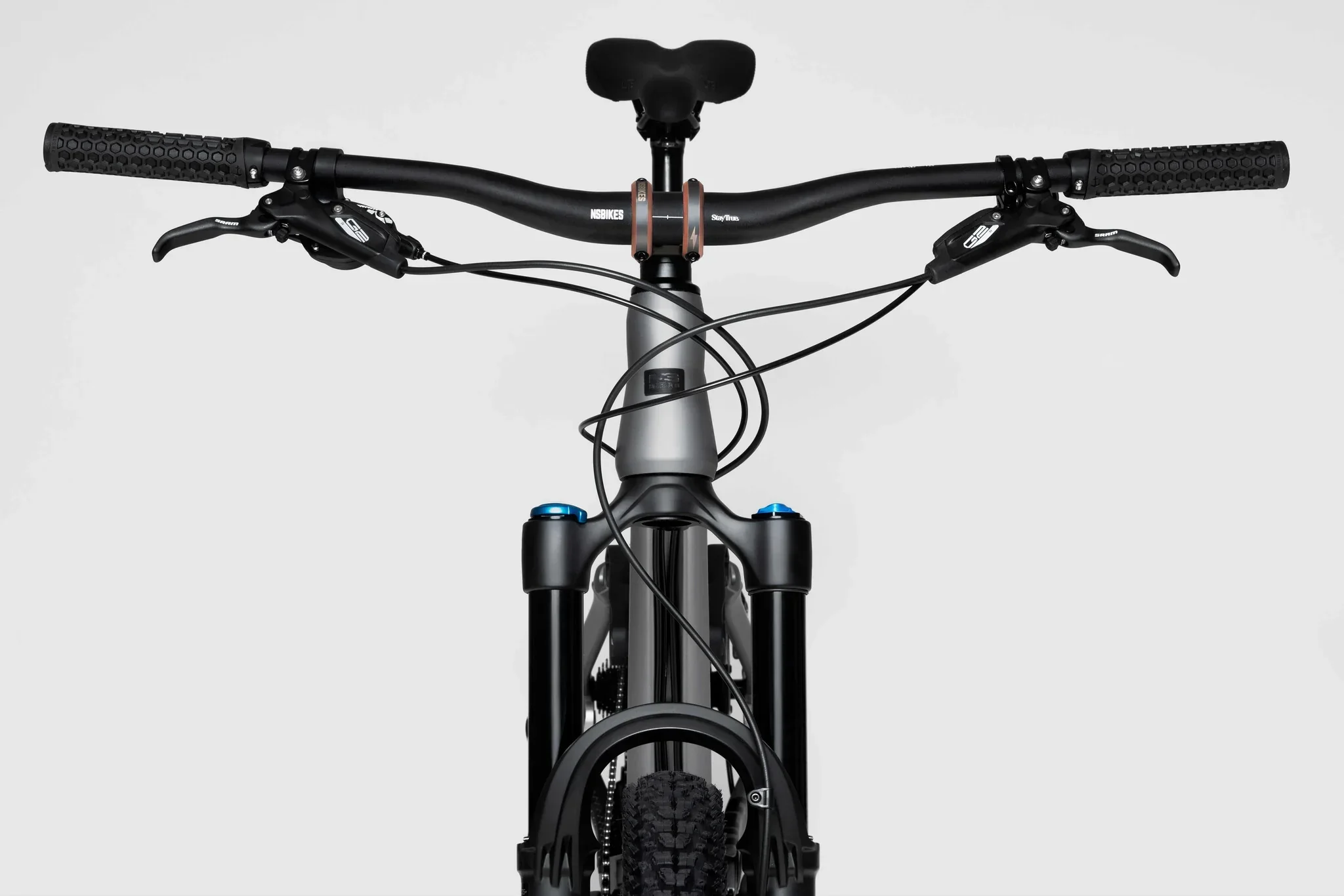

Stem: NS Bikes Quantum Lite 45mm, 35mm diameter

Handlebar: NS Bikes 35, 780mm, 20mm rise

Grips: NS Bikes Hold Fast supersoft

Seatpost: Race Face Aeffect R 31,6mm diameter. S - 125mm, M - 150mm, L - 170mm

Saddle: WTB Volt Medium Cromoly

Front brake: Sram G2 R 4 piston, 200mm

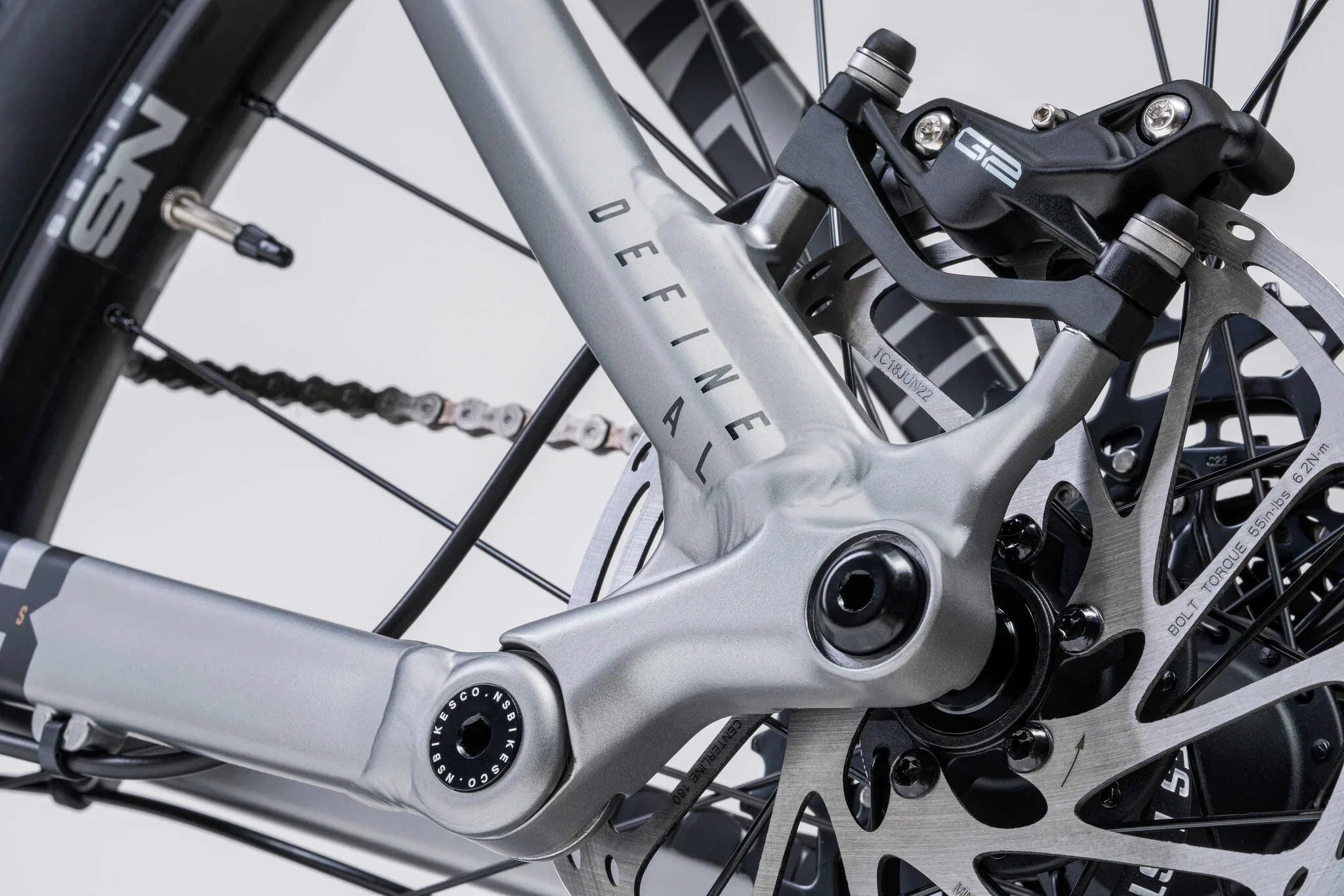

Rear brake: Sram G2 R 4 piston, 180mm

Rims: Octane One Solar 29”, 32h, tubeless ready

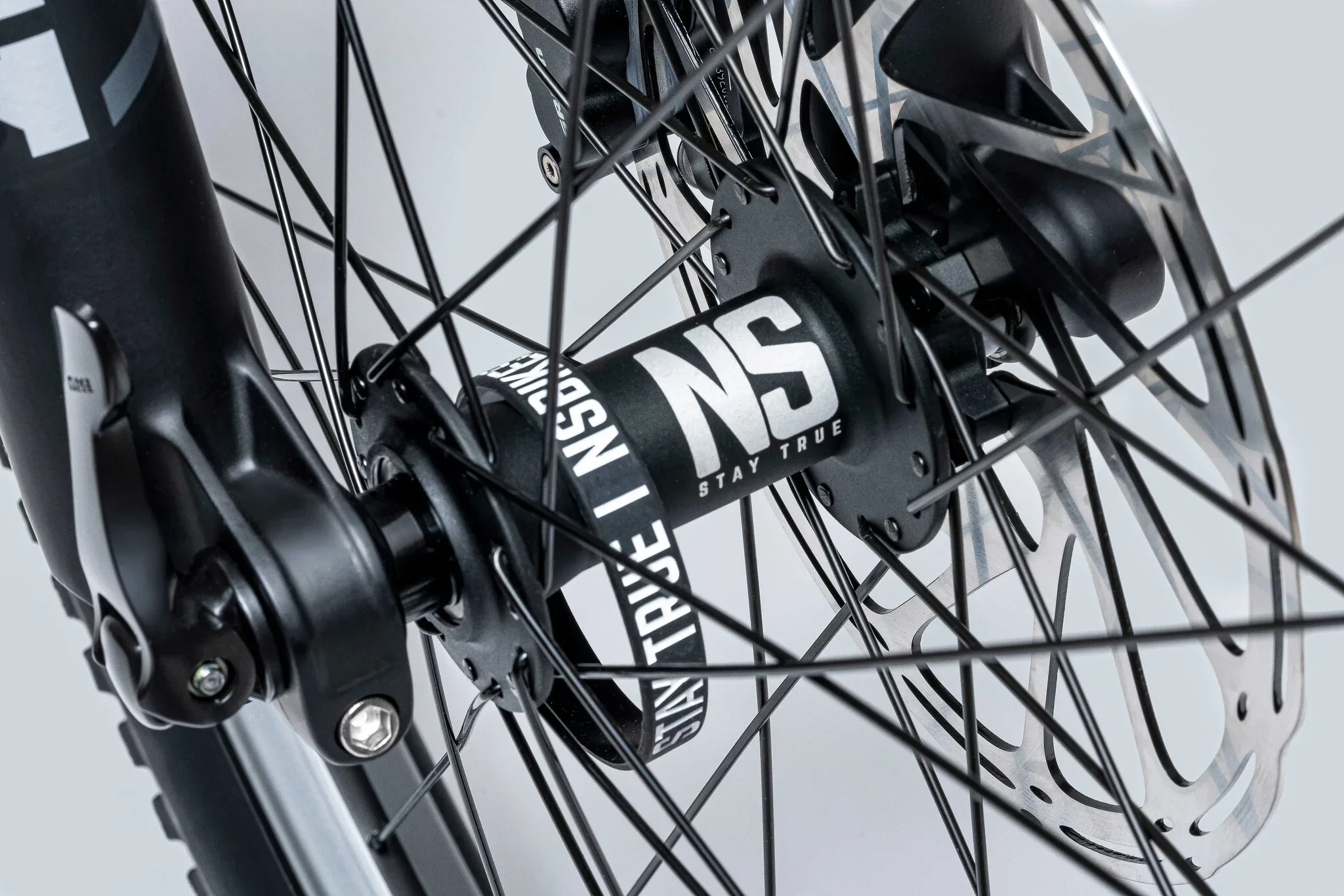

Hubs: NS Bikes Rotary

Tires: Maxxis Rekon EXO TR 29x2.4WT

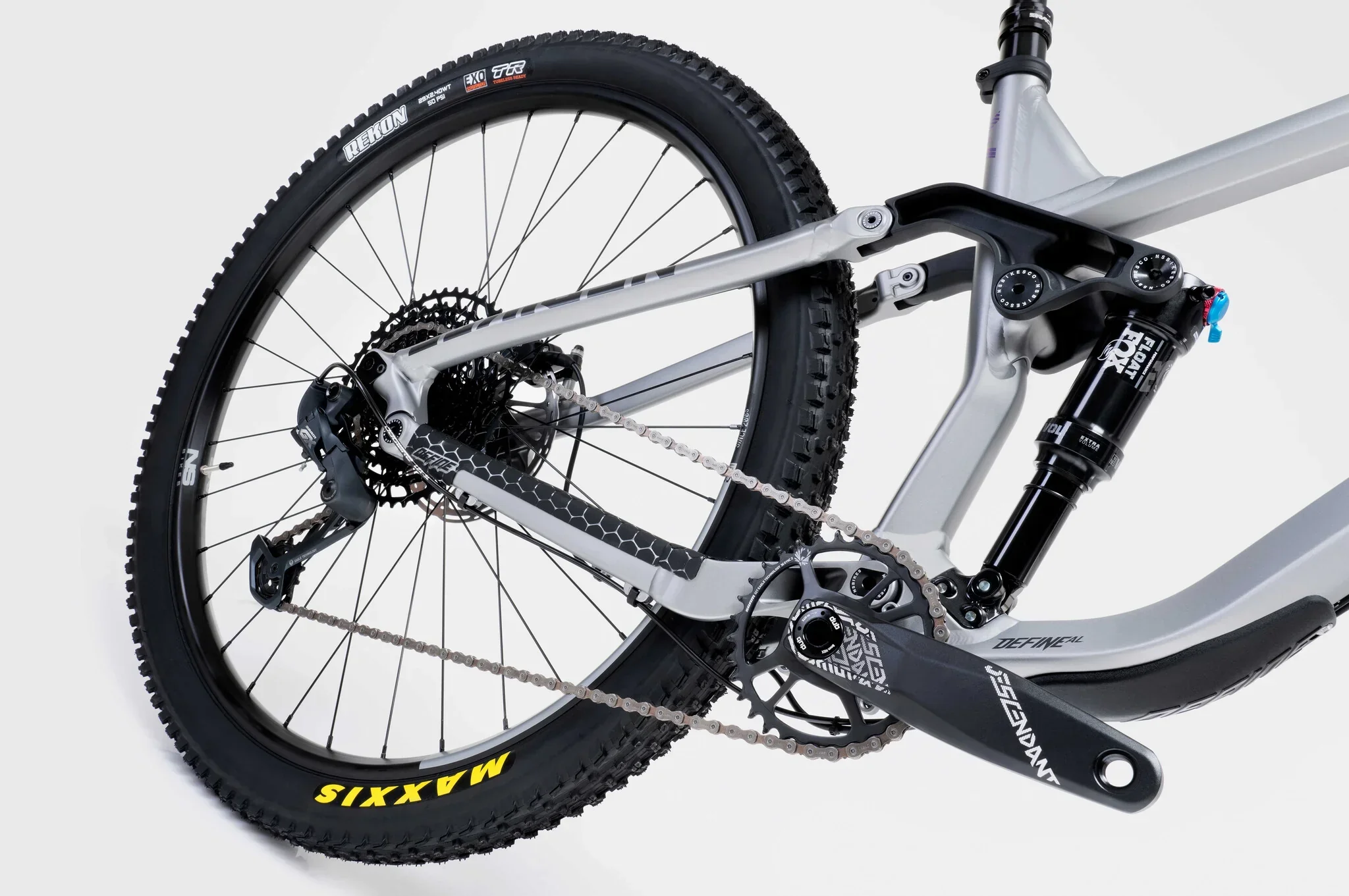

Crankset: Truvativ Descendant 6K DUB 170 32t

Bottom bracket: Sram DUB BSA 73mm

Chain: Sram SX Eagle

Derailleur: Sram GX Eagle

Shifter: Sram NX Eagle

Cassette: Sram PG-1210, 11-50t, 12spd



MAIN FEATURES

• Fox Performance suspension
• Sturdy GX Eagle derailleur
• SRAM G2 4-piston brakes
• Race Face Aeffect R seatpost
• 65° Head Tube Angle
• 76° Effective Seat Tube Angle
