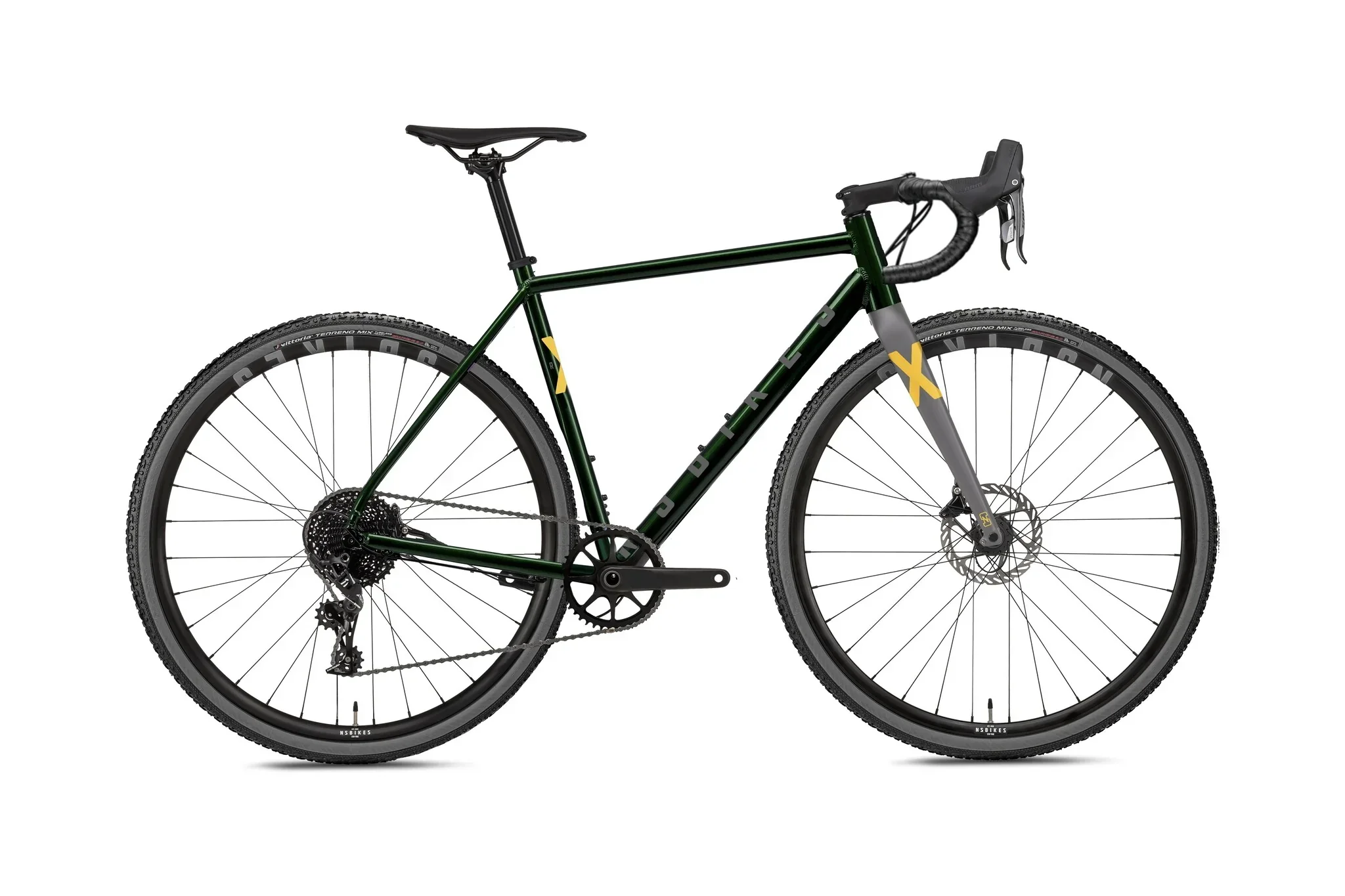

NS Bikes XRAG - 2025
| SKU | NS2XRA111 |
| Model | XRAG |
| Color version | GREEN |
| Frame |
NS AL6061-T6 custom formed and butted tubes, tapered integrated headtube, 142x12mm dropouts
|
| Sizes | S,M,L,XL |
| Rear Shock | - |
| Fork |
NS CX full carbon fork, 12mm dropouts, 1.5T, thru axle
|
| Headset |
GW integrated tapered IS42/52, sealed bearings
|
| Stem |
RAG+ Stem 31.8 S:80mm, M:90mm, L:100mm, XL:110mm, angle, - 8°
|
| Handlebar | NS Buffalo 31.8, S:400mm, M,L,XL: 420mm |
| Grips | Selle Italia SMOOTAPE Gran Fondo |
| Seatpost | Kalloy 27.2 |
| Saddle | Selle Italia X3 |
| Front brake | SRAM Rival hydraulic disc, 160mm |
| Rear brake | SRAM Rival hydraulic disc, 160mm |
| Levers | SRAM Rival 11 speed |
| Rims |
Alex Draw 2.1P Asymmetrical, 32h, tubeless compatible
|
| Spokes | Spokes w/14mm nipples |
| Front hub | NS Bikes 100x12mm (sealed bearings) |
| Rear hub | NS Bikes 142x12mm (sealed bearings) |
| Tires front/rear | Vittoria Terreno MIX 700x33c |
| Crankset |
Gravel Direct Mount S:170mm, M:172.5mm, L:175mm 40t
|
| Bottom bracket | BSA BB 73mm |
| Pedals | - |
| Chain | SRAM, 11 spd |
| Chainguide | - |
| Derailleur | SRAM Apex 11 spd |
| Shifter | SRAM Apex 11 spd |
| Cassette | SunRace CSMS7 11-42t |
