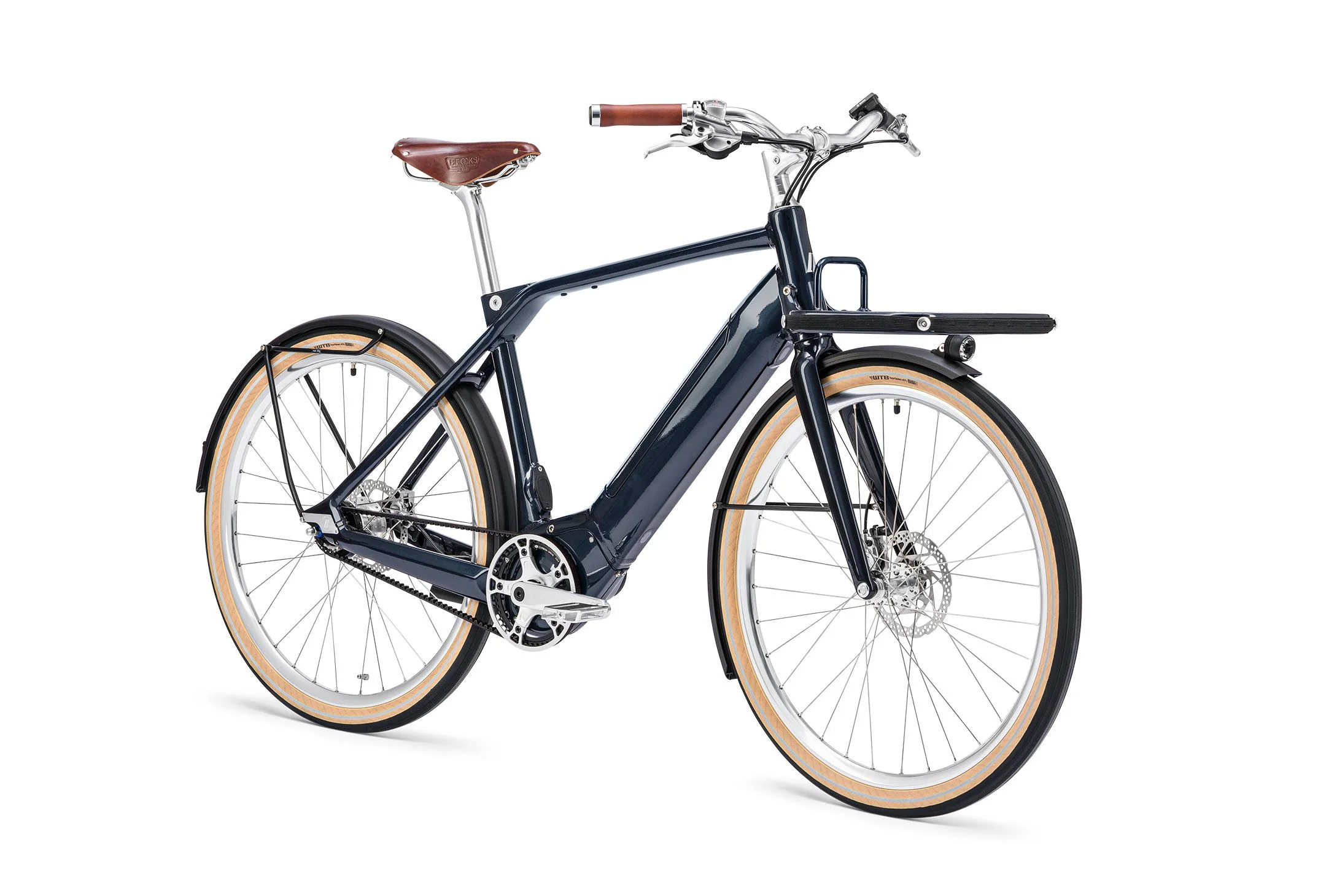

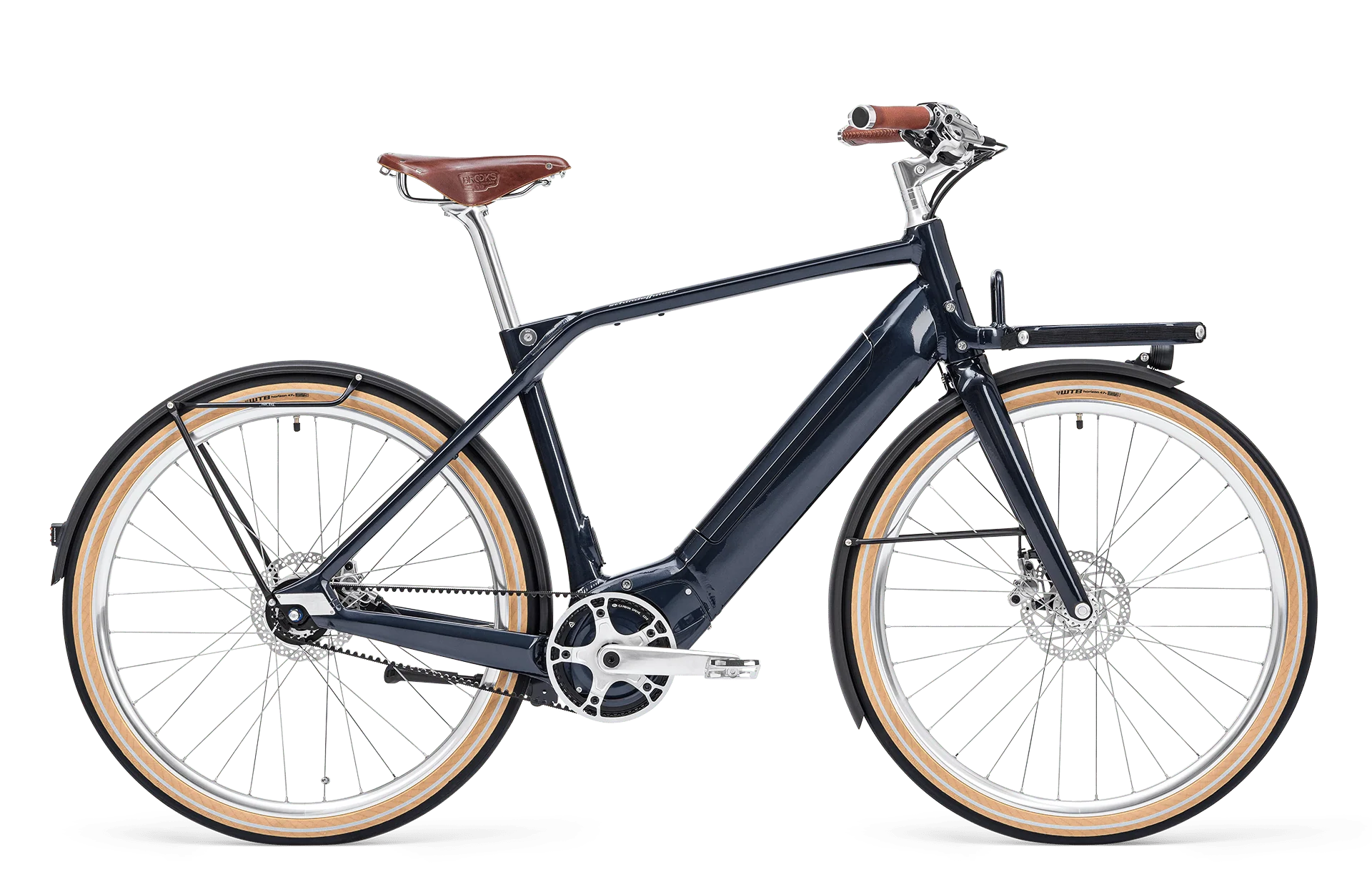

Schindelhauer Heinrich VIII
As a solid, fully equipped 8-speed electric bike, Heinrich is designed for versatile uses and rider types. A natural, manoeuvrable feel gives you undreamt-of agility without sacrificing riding fun. Heinrich makes everyday life easier for commuters and hobby riders - and for those who want to become one.
Classic elegance meets modern technologies.
Silver-polished components combined with classic Brooks leather applications provide an exciting contrast to Heinrich's high-tech character. Driven by the futuristic Gates carbon toothed belt and electrically supported by the high-quality Bosch system, Heinrich is a harmoniously tuned complete bike at your side. Despite full equipment and the innovative front rack, the design is very tidy, typical of Schindelhauer - all cables and shifting cables are routed completely internally.
Reliable. Quiet. Enduring.
The very quiet and reliable Bosch motor does not need a gearbox, so you can also ride relaxed without assistance or above 25 km/h. Thanks to the high-performance battery, Heinrich offers enough freedom for relaxed rides into the countryside or from the countryside into town.
Powerful mid-drive
The third generation of Bosch motors impresses with long range and virtually unnoticeable pedalling resistance when the motor is switched off or while riding above 25 km/h. On inclines the motor analyses the interaction between the shift, torque and cadence, ensuring optimal efficiency and energy use.
Removable battery
The PowerTube 500 battery enables a range which, depending on the motor level, can last for multiple trips to work, shopping or out into nature. The battery is removable and fully charged in 4.5 hours.
Control via onboard display
The choice of assistance is made via the handlebar-mounted Bosch Purion display, which can be used to select the four motor levels, from Eco (minimum assistance) to Turbo (maximum assistance), as well as displaying the driving speed.
8-speed hub gear
The 8-speed Shimano Alfine hub gear is the proven choice - quiet and with little rolling resistance, it offers the ideal addition to the Bosch drive unit in conjunction with Gates Carbon Drive.
Frame Aluminium (AL6061-T6), triple butted tubing , forged motor bracket, multi-cell down tube, forged dropouts with slider-belt-tensioning-system and Schindelhauer belt port, integrated seat post clamp, internal cable routing, smooth welded, 5-year warranty
Fork Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes
Headset Tange Seiki integrated, tapered 1 1/8-1,5
Motor Bosch - Active Line Plus, power: 250 W, torque: 50 Nm, max. support up to 25 km/h
Battery Bosch - Powertube 500, intube battery, energy: 500 Wh
Display Bosch - Purion
Power Transmission Gates Carbon Drive - CDX, front 50T, rear 22T, belt 118T
Gear Shift Shimano - Alfine 8-speed internal gear hub
Bottom Bracket -
Crank Set Miranda - Delta
Pedals Schindelhauer - Urban Pedal, aluminium, CNC machined
Stem Satori - Stealth, aluminium
Handlebar Satori - Noirette aluminium
Saddle Brooks - B17
Grips Schindelhauer - ergo leather grips
Wheels Schindelhauer - high flange front hub disc, Shimano - Alfine 8-speed internal gear hub, Alexrims - EXR25 rims with eyelets, Sapim - Strong spokes, 3-cross and 2-cross laced
Brakes Formula - CURA disc brakes (hydraulic), 160 mm
Tyres WTB - Horizon 47-584, with reflex stripes
Weight 23.7 kg (size M)
Mudguards Wingee - W52 Schindelhauer custom
Pannier rack Schindelhauer - aluminium, frame mounted, with strap system, ready for Ortlieb Rack-Lock, rear mudguard with integrated luggage stays
Lighting Supernova - Mini 2 front light, E3 tail light
Max. total weight 155 kg (bike + rider + luggage)
Seat Post Schindelhauer
We are constantly refining our products. Therefore, technical details, features, or colors may be changed without prior notice in order to improve quality and performance.
